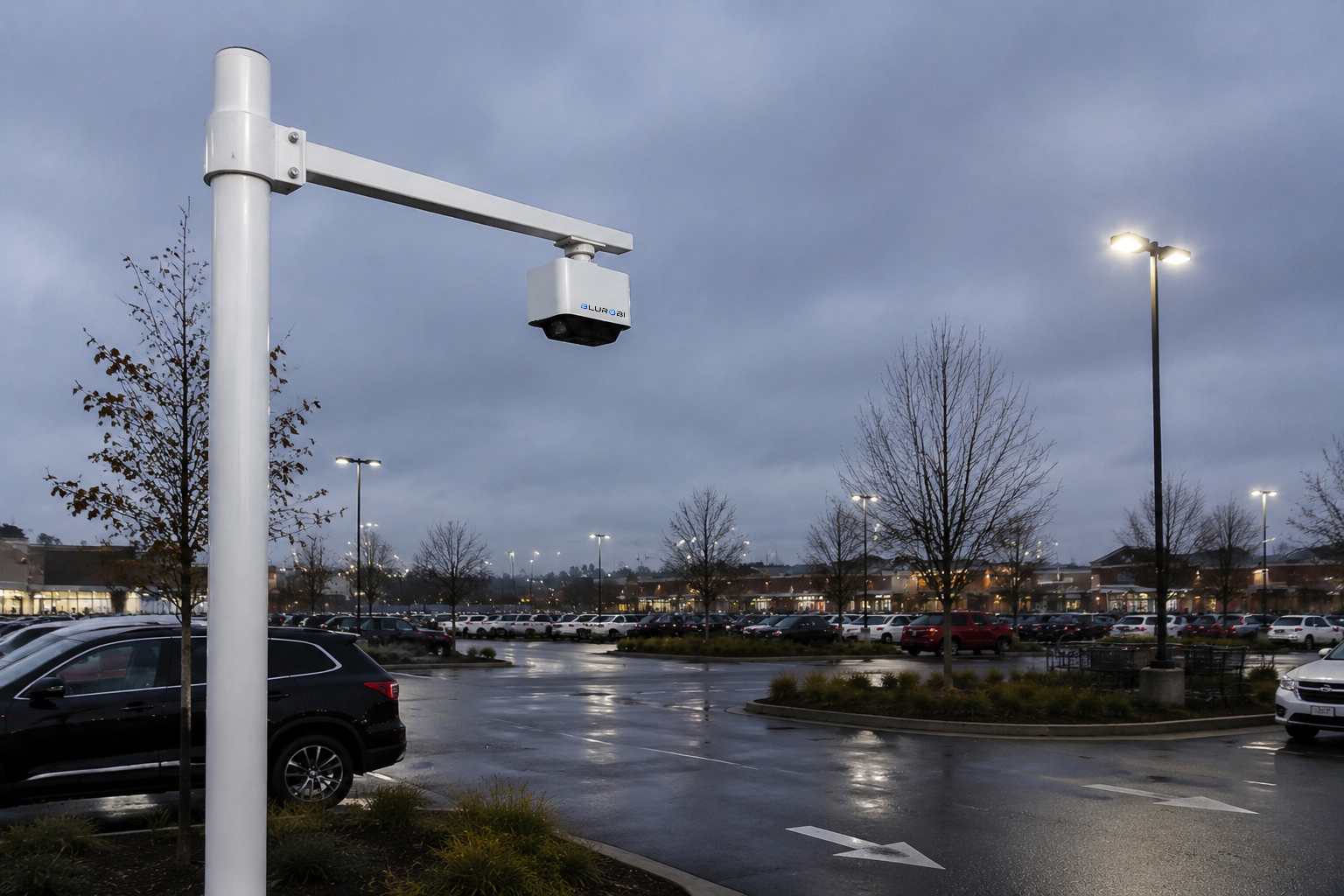

Star‑Grade Triple‑Lens Imaging
8MP starlight‑level CMOS sensor delivers multi‑angle high‑definition imaging even under low‑light conditions.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

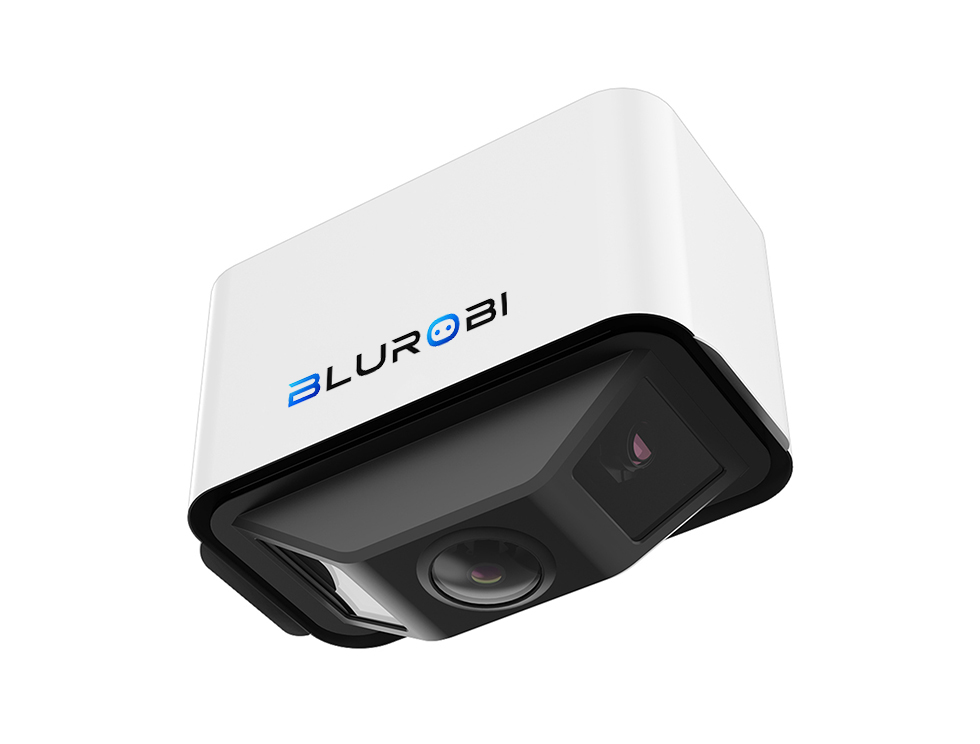

SV-PR-H1A-EX Entrance & Exit Perception Camera
Ultra-high-definition AI hardware integrating recognition for vehicle turnaround, tailgating, lane congestion, and personnel loitering at enclosed parking lot entrances/exits.
8MP starlight CMOS with intelligent LED fill light.
Basic Parameters Sensor 1/1.
8-inch CMOS 8 MP Lens Focal Length 2.
3 mm (Fixed) Shutter Auto/Manual 1/40 ~ 1/1000 s Min Illumination Color: <= 0.
Product Advantages
Key product strengths and performance benefits.

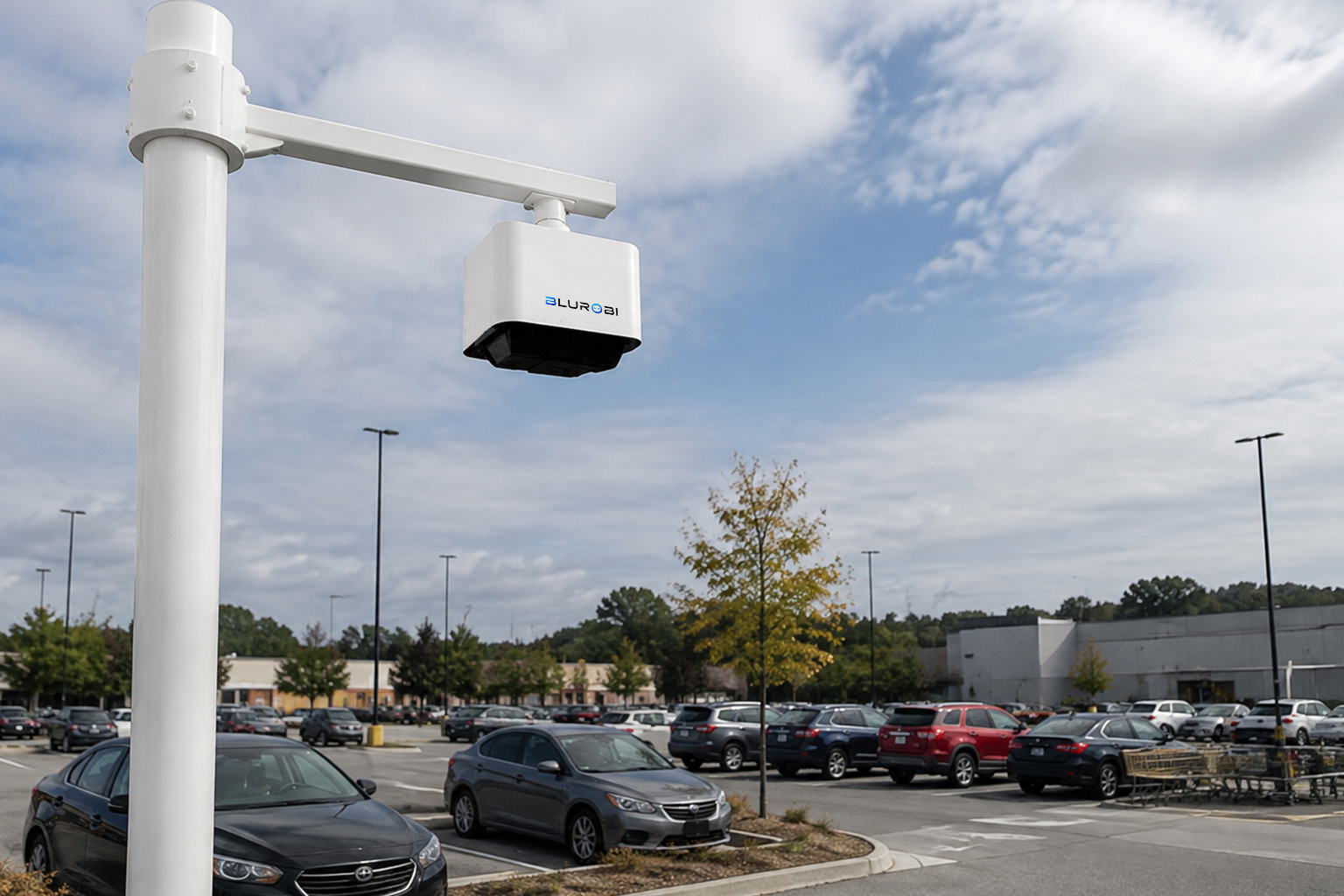

Mini‑PTZ Motorized Focus
Built‑in mini PTZ structure supports motorized focusing for fast on‑site calibration for pole‑mount installation.

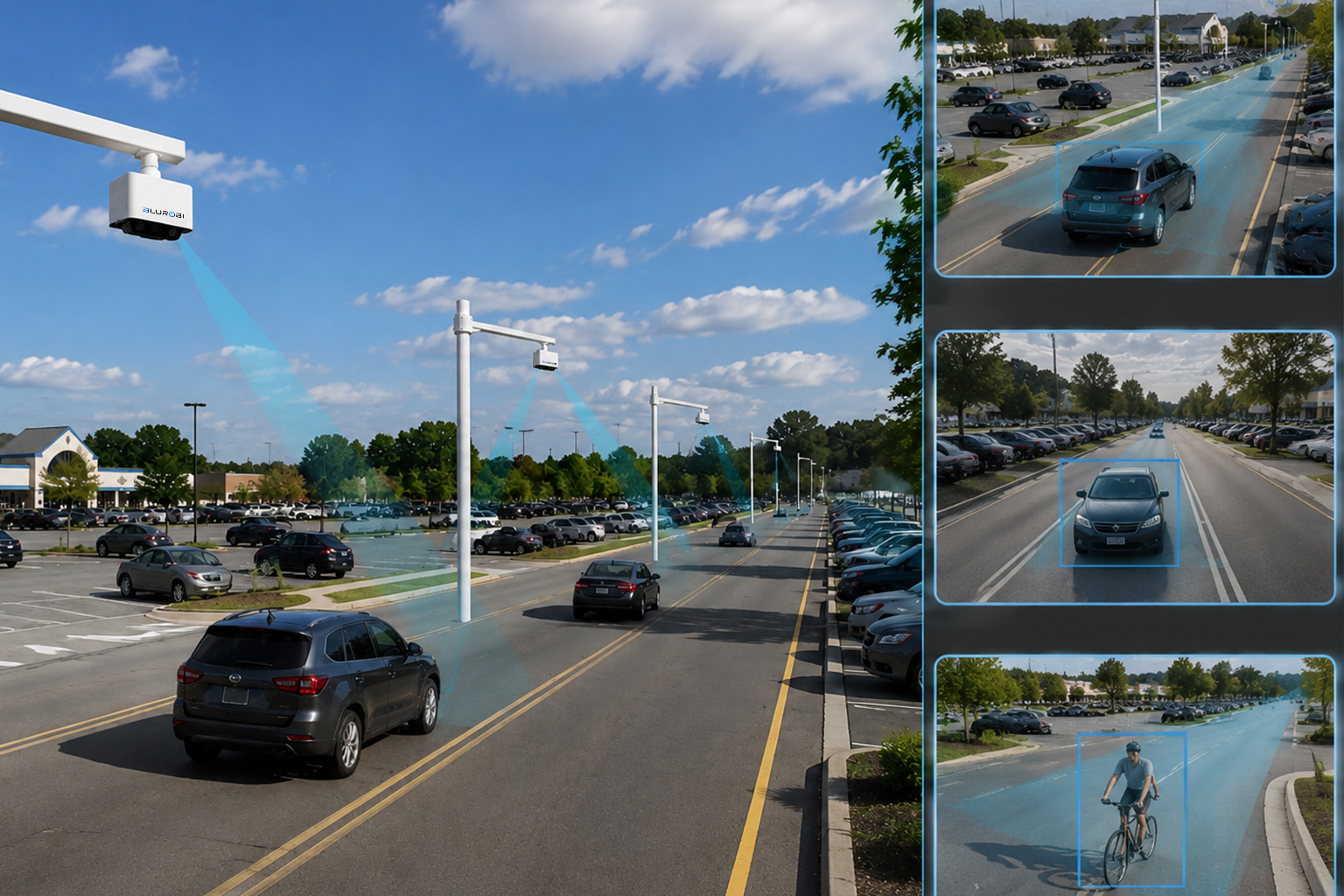

High‑Precision AI & Cross‑Lens Tracking
On‑device AI detects motor vehicles and non‑motorized objects, realizing seamless relay tracking across multiple cameras.

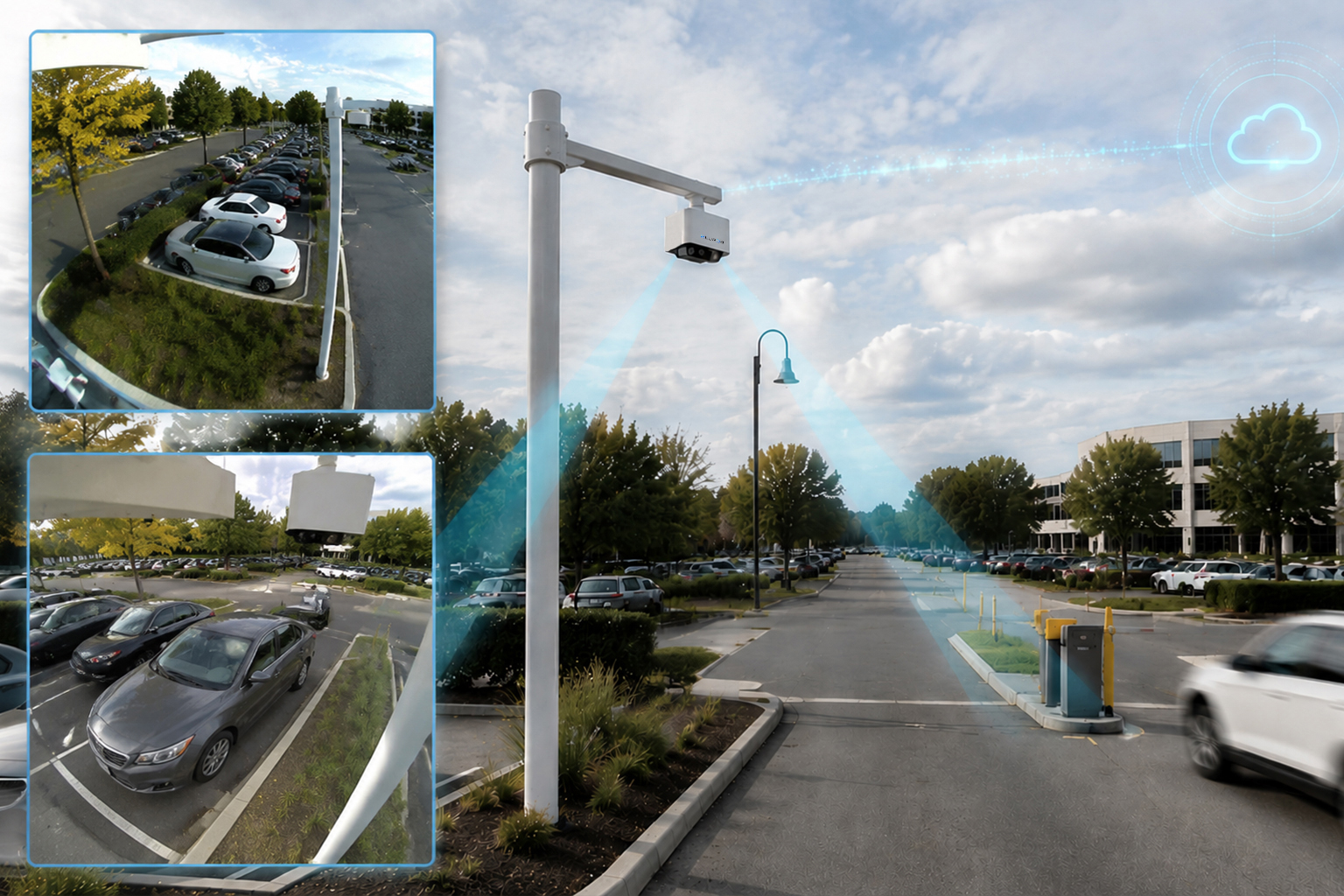

Full‑Scene Coverage & IoT Remote O&M
Cover pole‑bottom blind‑spot parking spaces and gated lot gateways. IoT centralized management simplifies large‑scale operation & maintenance

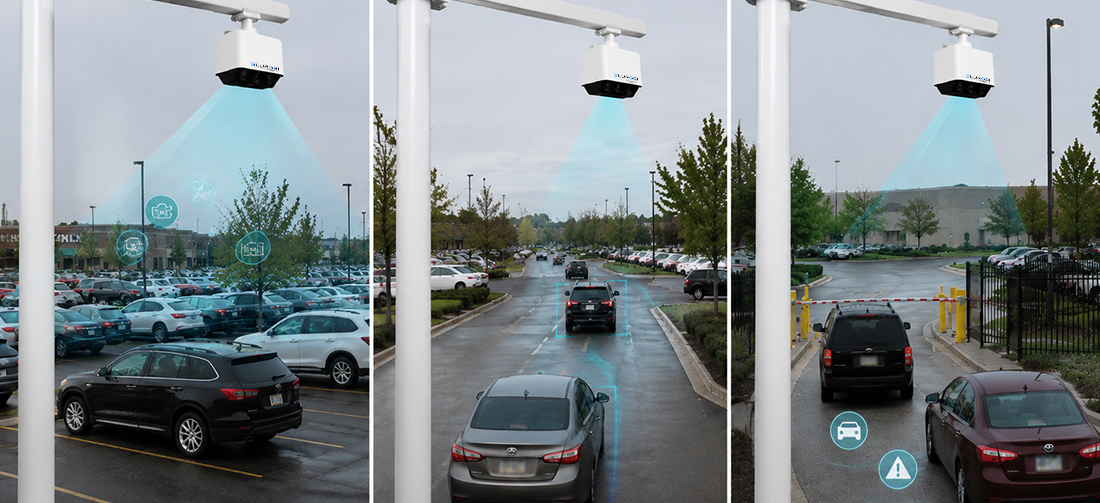

Application Scenarios
Typical real‑world deployment environments for the product.

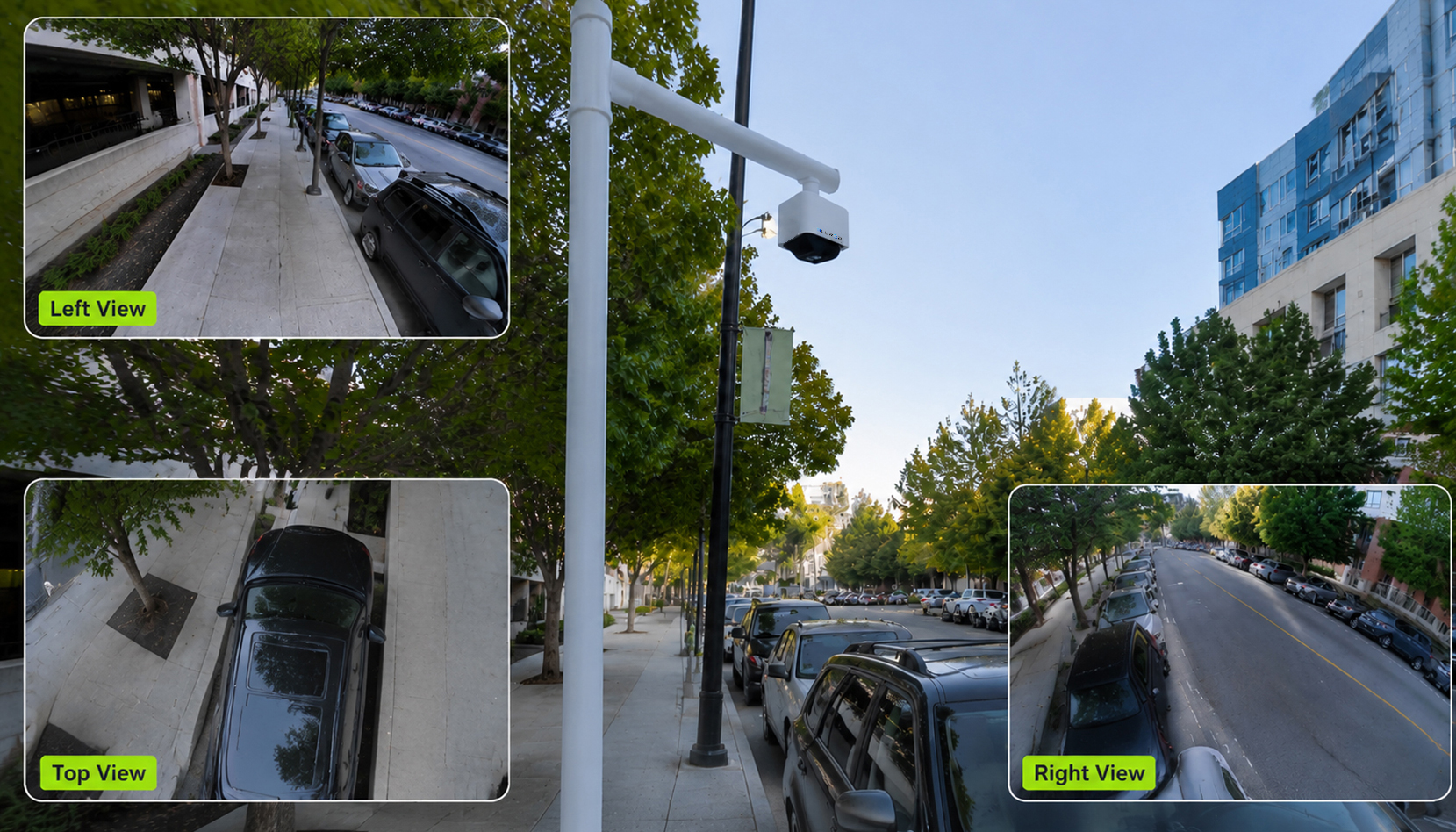

Urban Roadside Parking
Triple‑lens coverage for forward, reverse and pole‑blind‑spot parking bays.

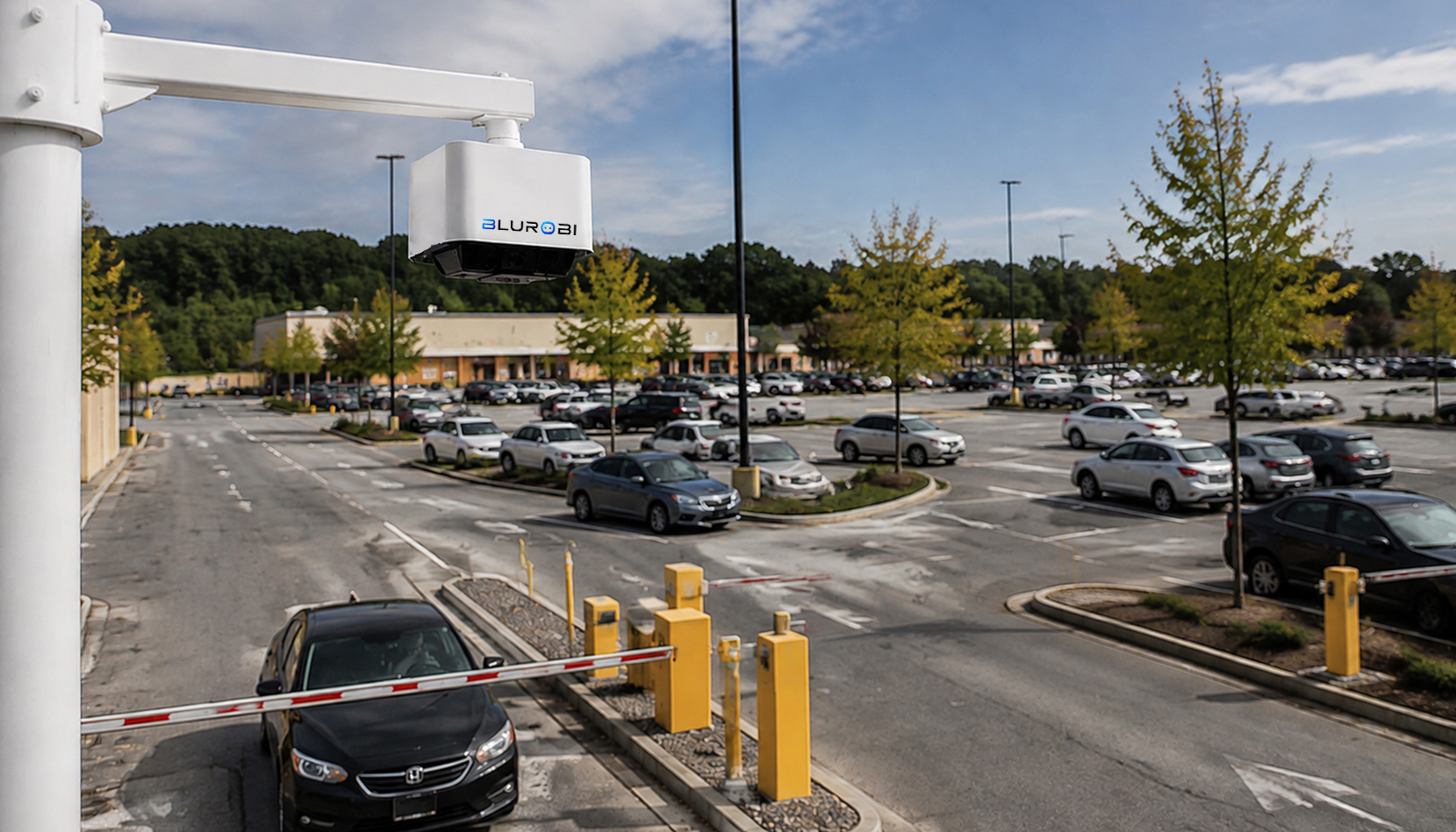

Parking Lot Access Control
High‑angle triple‑lens monitoring,continuous vehicle tracking,detect tailgating,U‑turn and lane occupation.

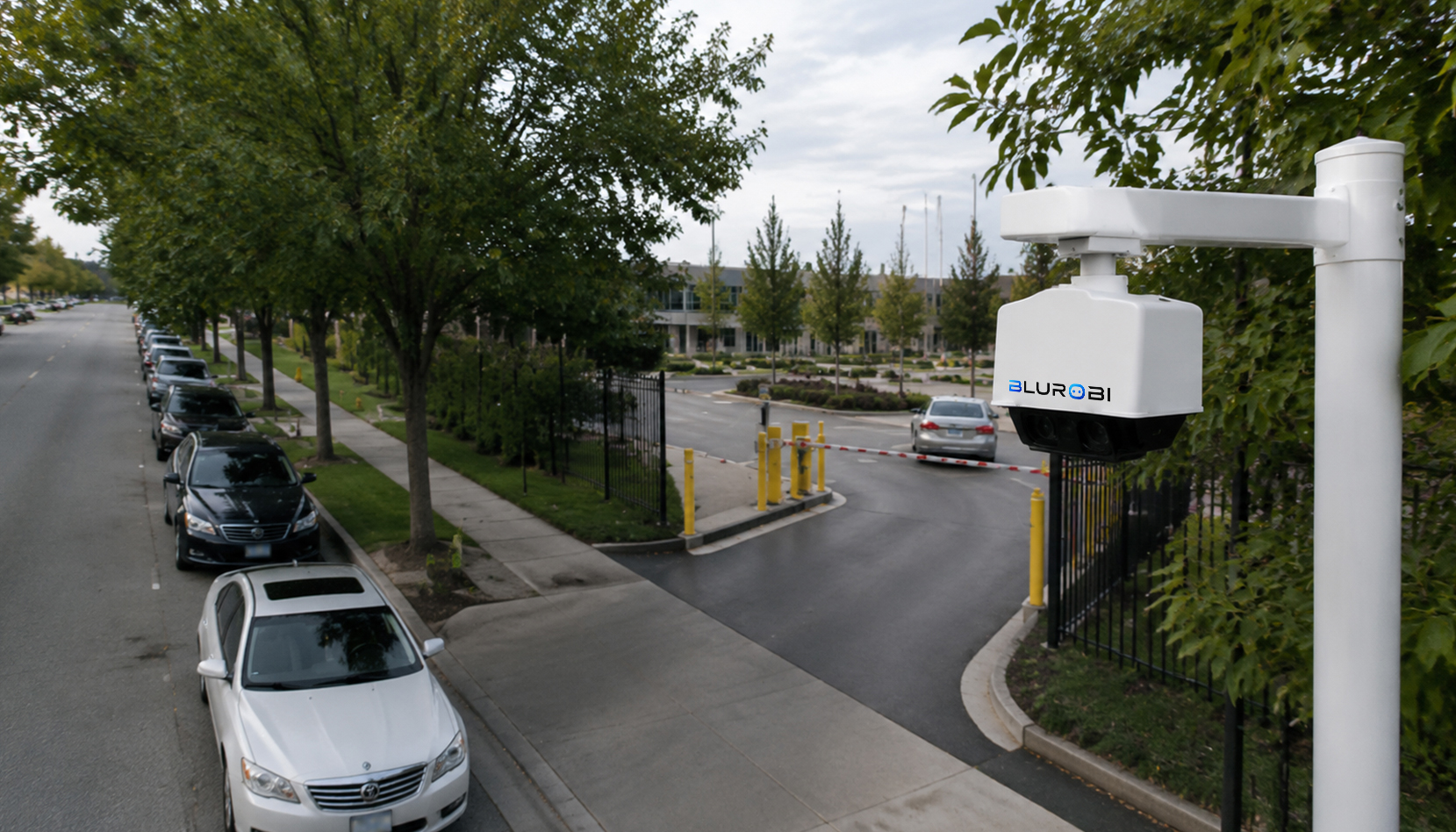

Semi‑Open Park Compound Management
Single device supports both curbside bays and compound gateways for hybrid scenarios.
Product Specifications
- Basic Parameters
- Sensor1/1.8-inch CMOS 8 MP
- Lens Focal Length2.3 mm (Fixed)
- ShutterAuto/Manual 1/40 ~ 1/1000 s
- Min IlluminationColor: <= 0.001 lx / B/W: <= 0.0001 lx
- Resolution3840 x 2160 @ 30 fps
- Bitrate256 Kbps ~ 16 Mbps
- CompressionH.264 / H.265, JPEG
- Noise Reduction2D/3D
- Functional
- OSD OverlayTime, location, lane information
- Time CalibrationNTP supported
- StandardsONVIF, GB/T28181
- Intelligent
- Turn-back AlarmSupported
- Tailgating AlarmSupported
- Lane Congestion AlarmSupported
- Crowd Gathering AlarmSupported
- General
- Network10/100 Mbps RJ45 x1
- PowerDC5521, DC 12V +/- 5%, 8W
- SD CardUp to 128 GB
- Dimensions120 x 114 x 121 mm
- Operating Temp-30 C ~ 70 C
- ProtectionIP67
- InstallationCeiling Mount
