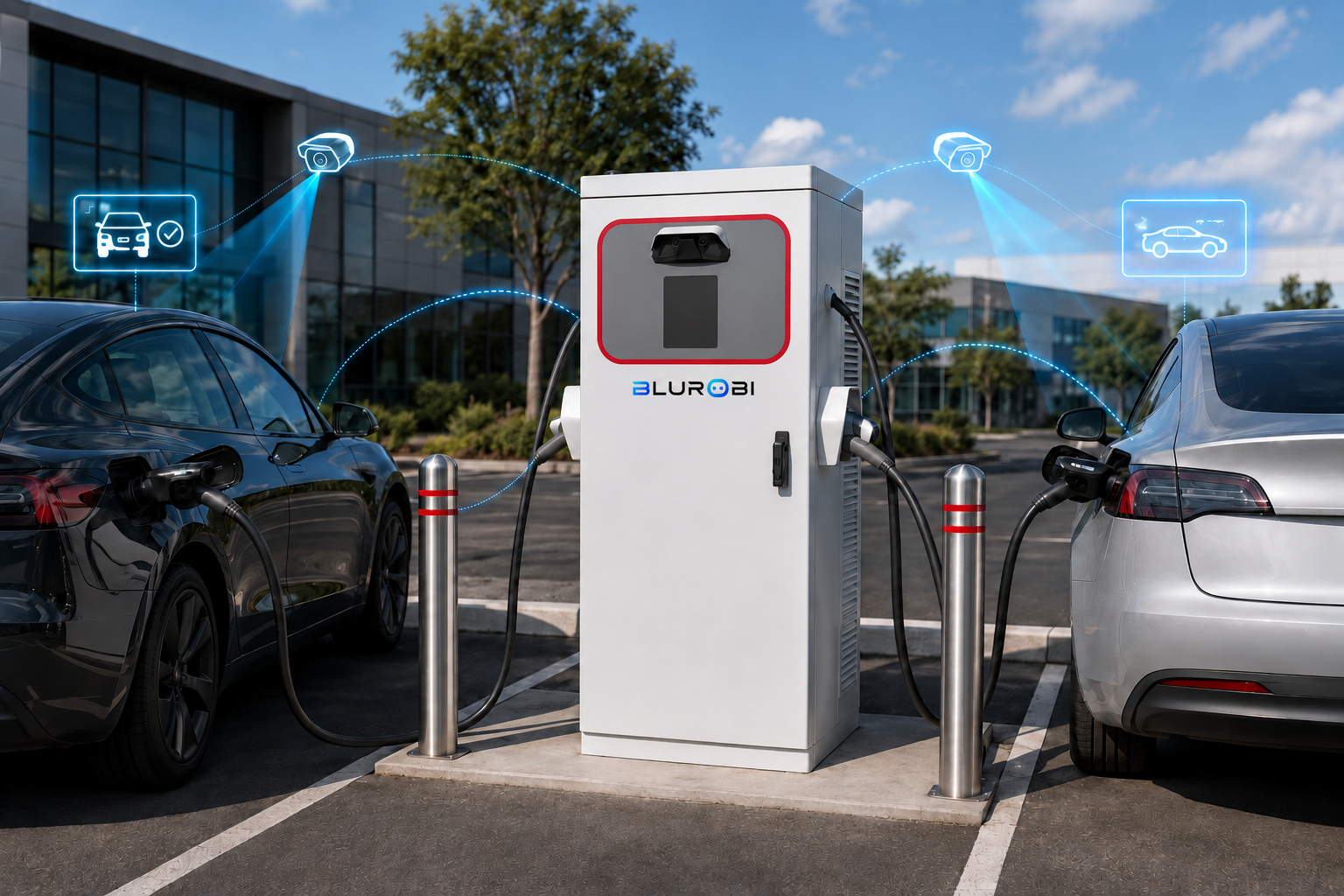

Integrated Parking, Charging & Intelligent Recognition
Dual‑gun DC charging and dual‑bay management, 99%+ accurate AI vehicle and license‑plate recognition.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.

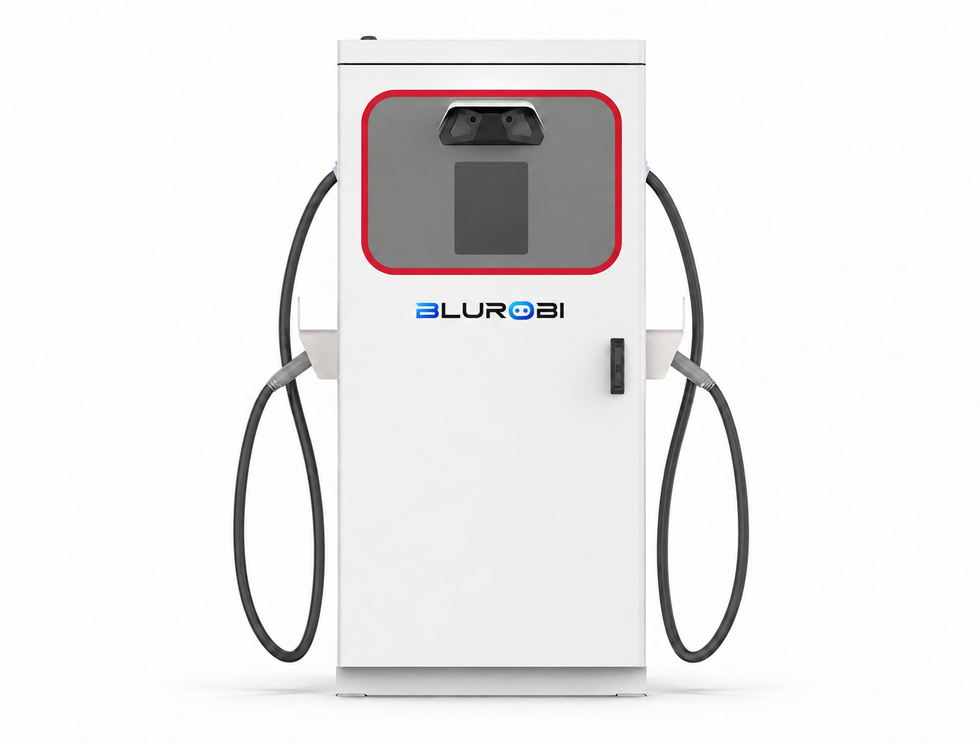

SV-CS-D1-EX Green Giant Parking & Charging All-in-One (DC 120kW)
Integrated DC fast charging (120kW dual-gun) + intelligent monitoring system.
Dual 4MP AI cameras monitor 2 charging spaces with vehicle type & plate recognition above 99%.
7-inch touch screen, CAN bus BMS connection, WeChat QR code charging.
Charging Input Voltage AC 380V +/- 15% Input Frequency 50 +/- 1 Hz Output Voltage 200 ~ 1000 V DC Single Gun Current 3 ~ 250 A Total Current 3 ~ 400 A Max Output Power 120 kW Voltage Accuracy <= +/- 0.
Product Display
Showcase of product features and physical appearance.
SV-CS-D1-EX Green Giant Parking & Charging All-in-One (DC 120kW)

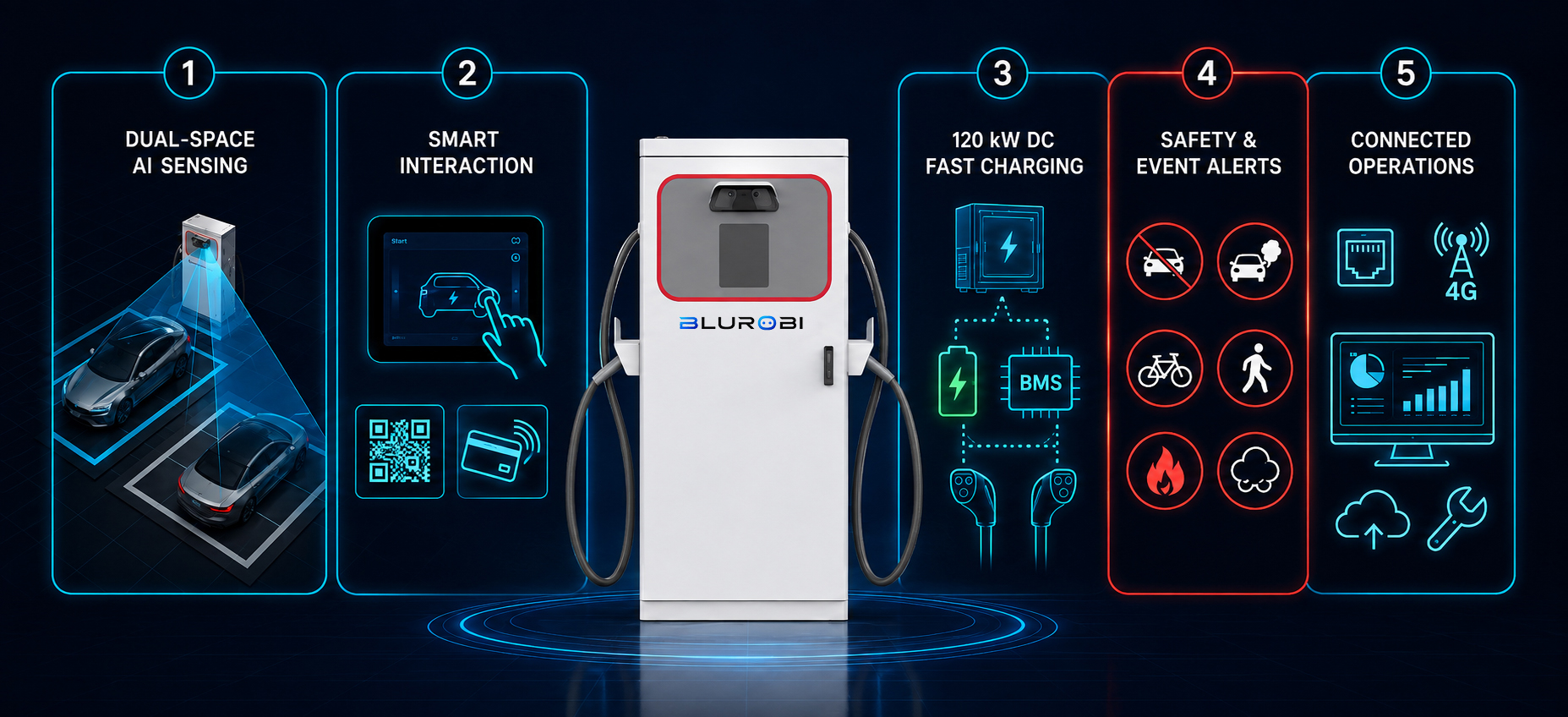

- Integrated 120 kW DC fast‑charging unit with dual‑bay monitoring and wide‑voltage EV compatibility.
- Resonant switching delivers ≥95% efficiency and superior power‑quality performance.
- Redundant power modules support BMS‑adaptive and multi‑mode flexible charging.
- Dual AI cameras achieve 99%+ vehicle recognition with full anomaly‑event detection.
- Complete safety safeguards, multi‑network monitoring, IP54 rating and broad‑temperature operation.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

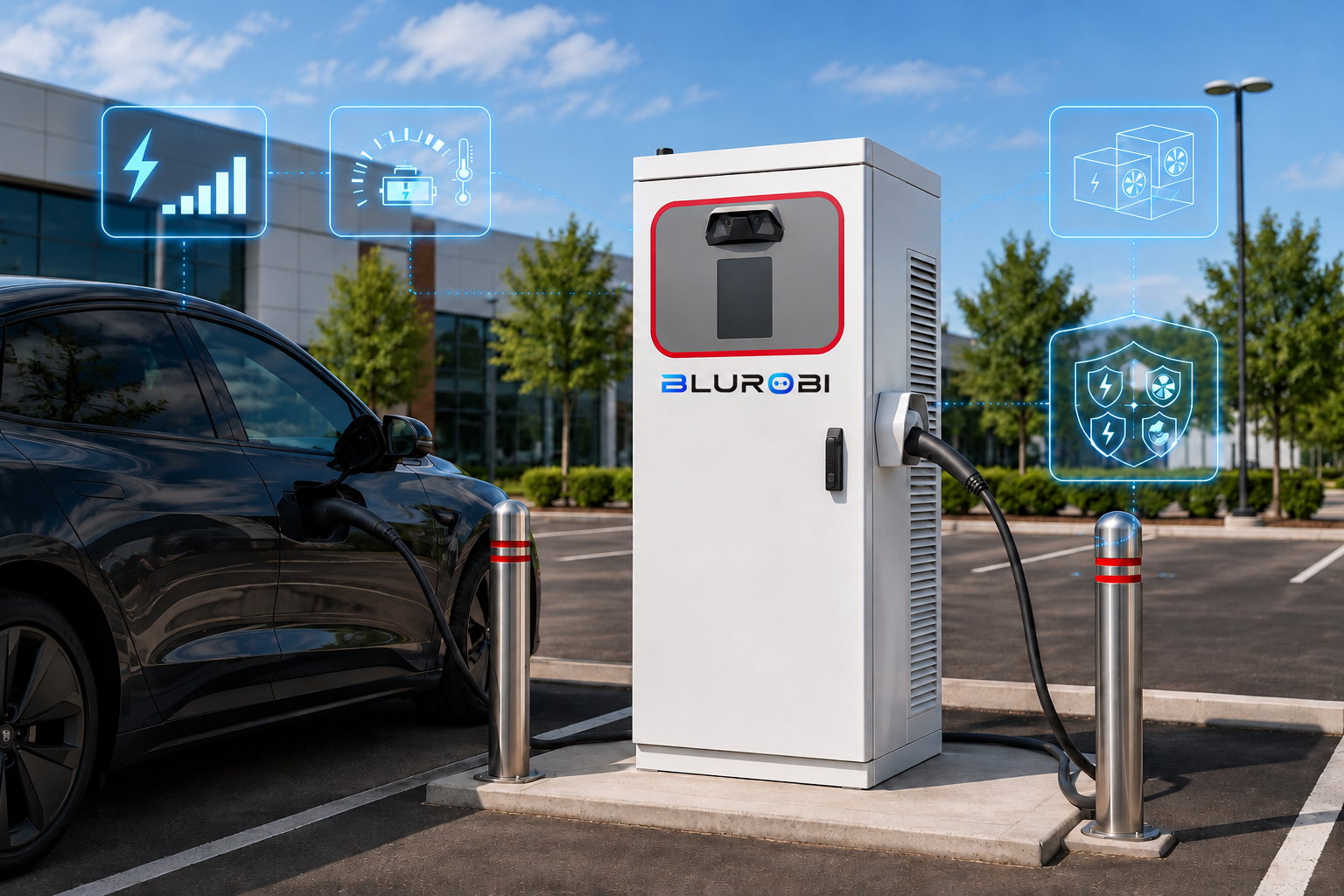

Efficient, Safe & Stable Charging
120kW wide‑voltage output, ≥95% efficiency, redundant modules and multi‑layer safety protection.

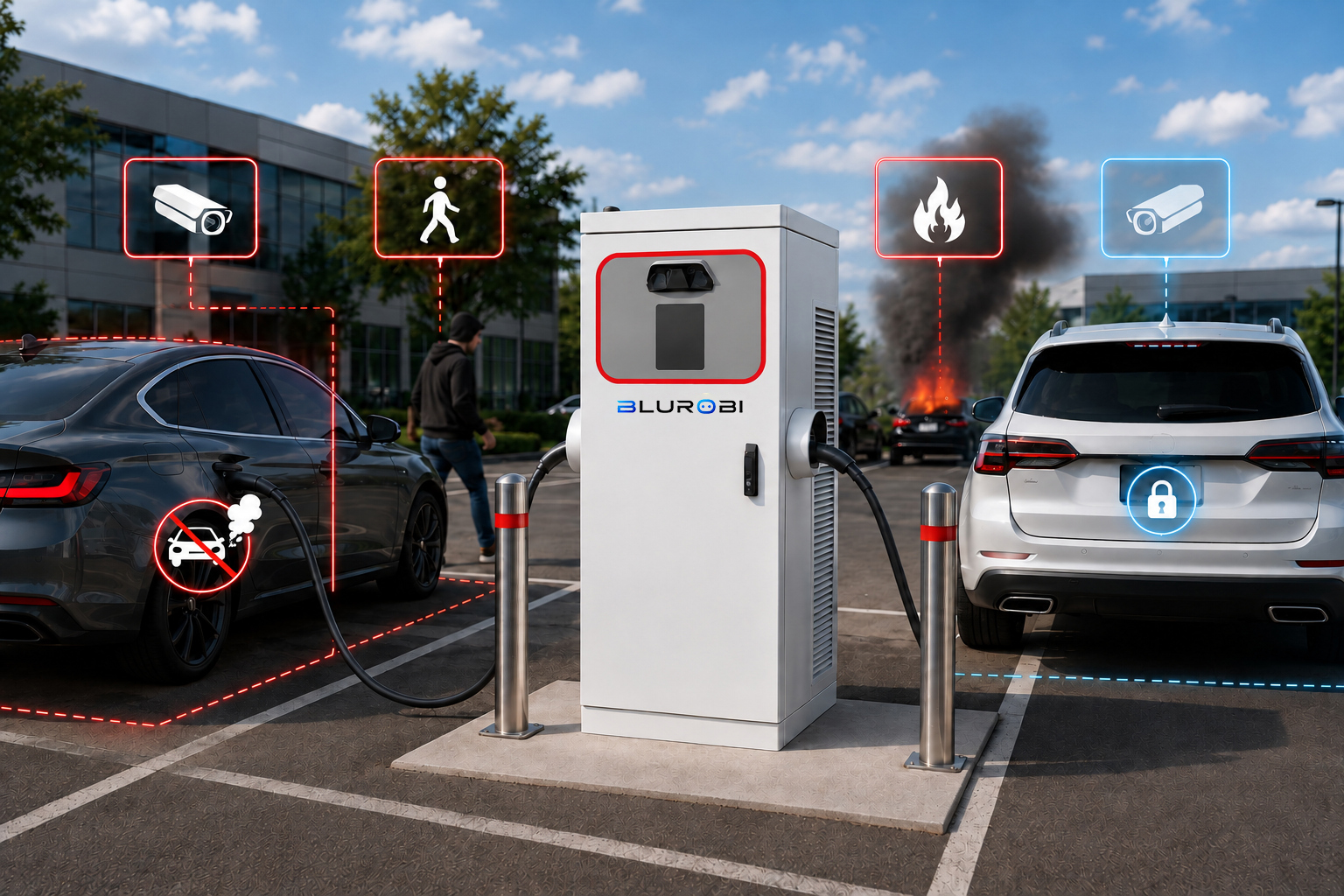

24/7 Smart Monitoring & Automated Control
24‑hour risk alerts, supports charging reservations and automatic parking‑lock control.

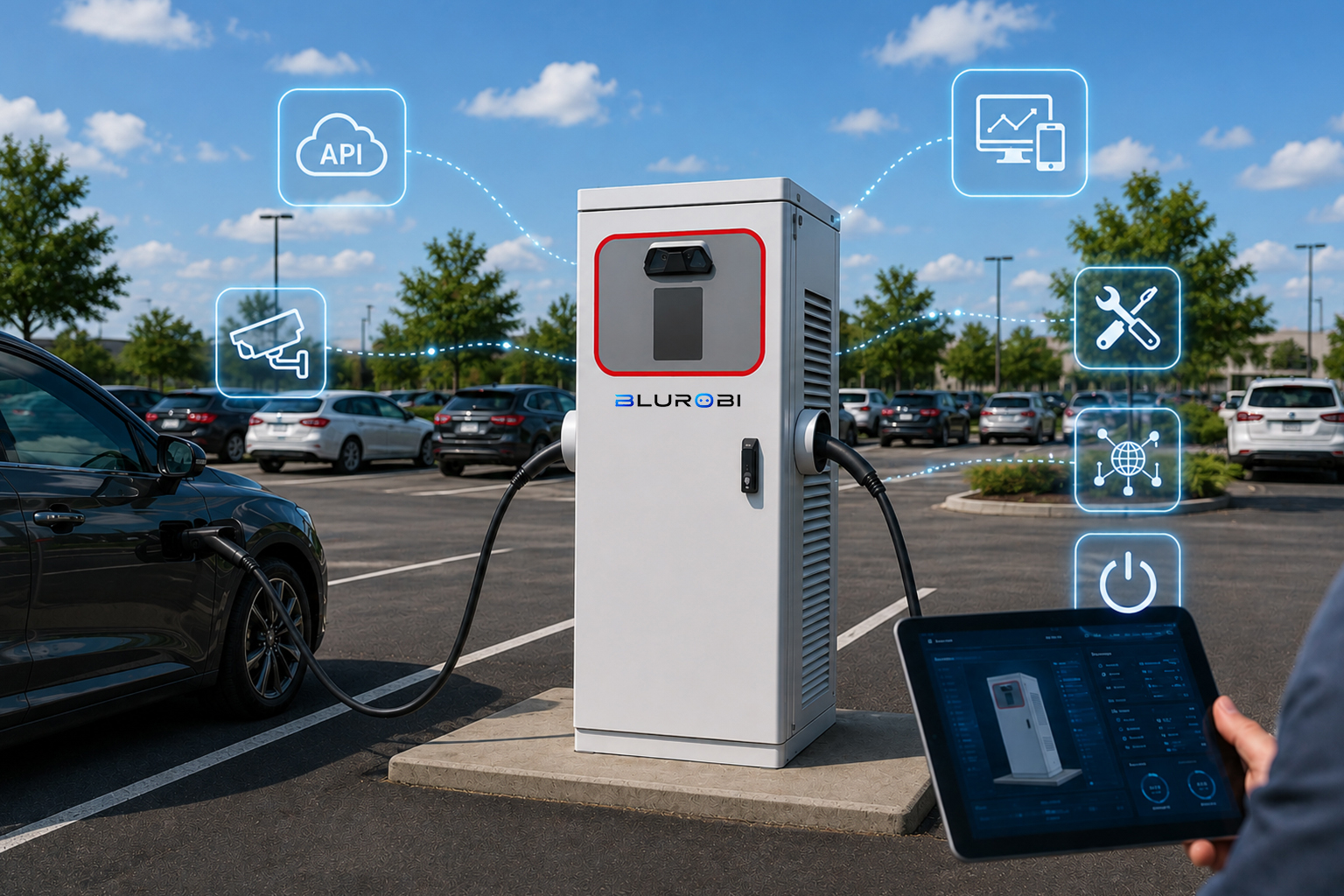

Open Integration & Remote O&M
Multi‑protocol and open‑API support, IoT platform for status monitoring and remote maintenance.
Application Scenarios
Typical real‑world deployment environments for the product.

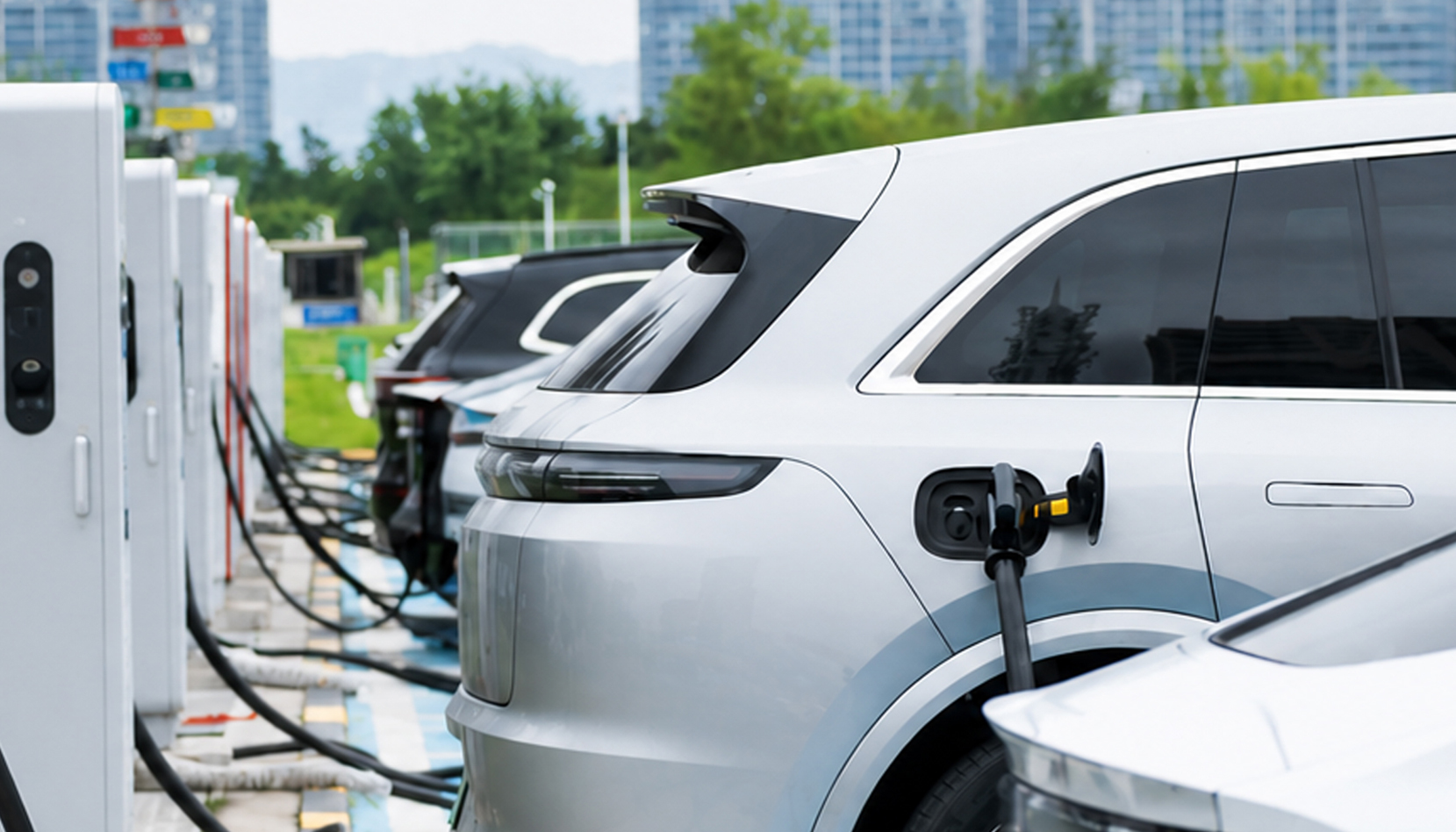

Commercial and Public Parking Lots
Delivers dual‑bay fast charging, vehicle recognition and occupancy management for malls, offices and campuses.

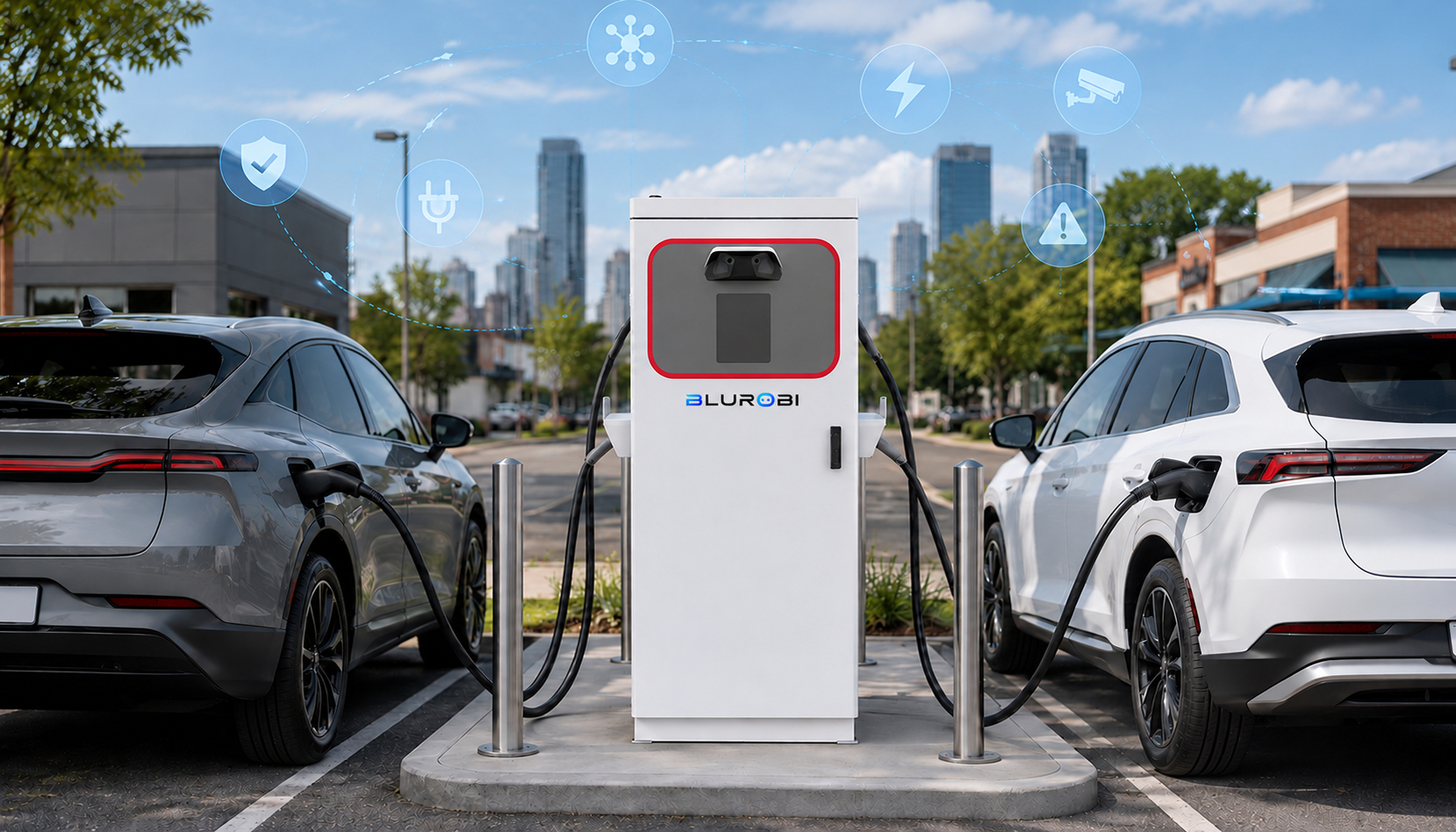

Urban DC Fast‑Charging Stations
120kW dual‑gun output for two bays, with connected monitoring, fault and video alerts for urban charging sites.

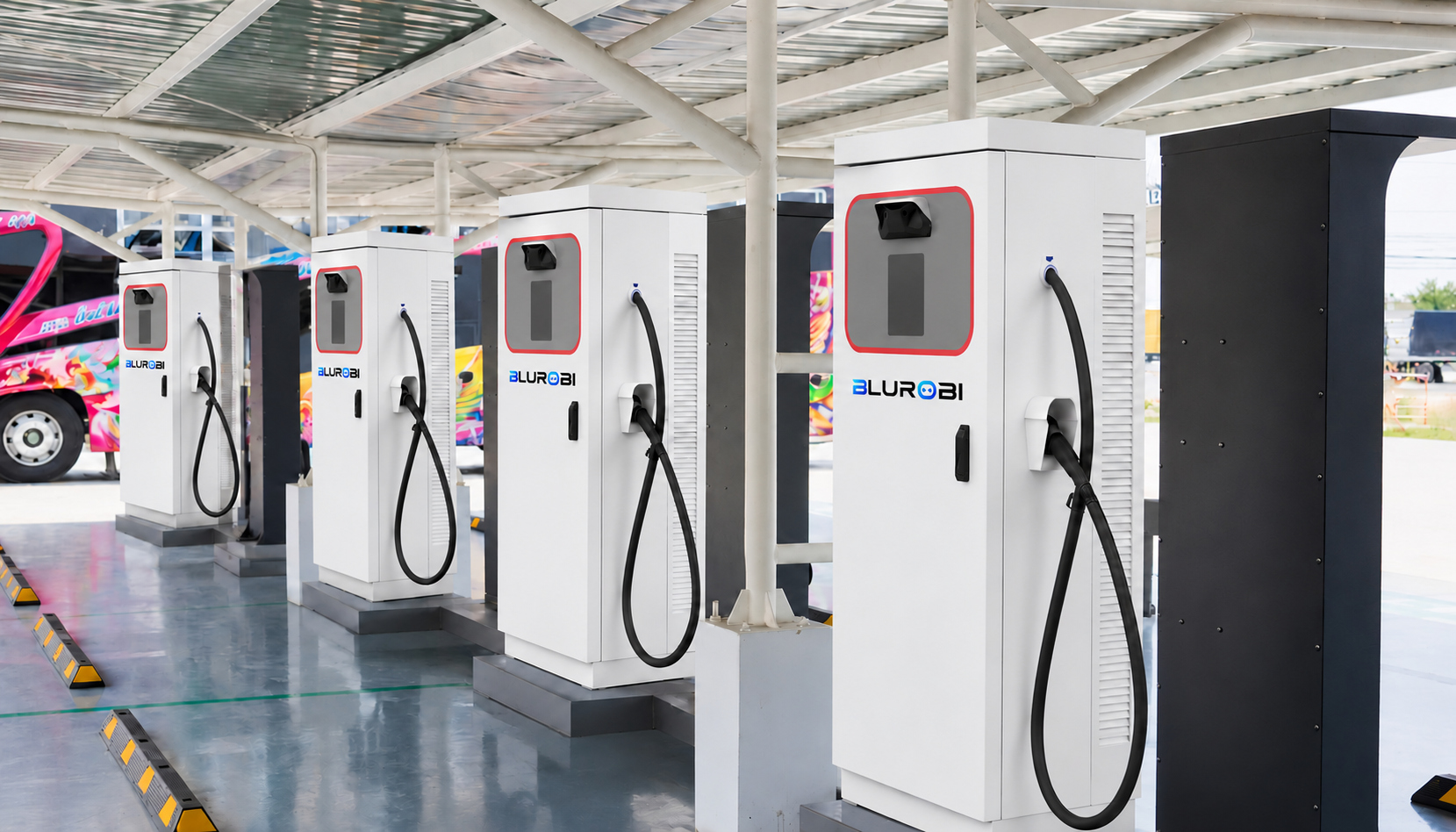

Highway Service Areas
Fast dual‑EV charging together with bay occupancy and hazard detection for high‑continuity roadside scenarios.
Product Specifications
Showcase of product features and physical appearance.
- Charging
- Input VoltageAC 380V +/- 15%
- Input Frequency50 +/- 1 Hz
- Output Voltage200 ~ 1000 V DC
- Single Gun Current3 ~ 250 A
- Total Current3 ~ 400 A
- Max Output Power120 kW
- Voltage Accuracy<= +/- 0.5%
- Current Accuracy<= +/- 0.5%
- Efficiency>= 95%
- Power Factor>= 0.98 (above 50% load)
- THD<= 5% (above 50% load)
- Gun Quantity2
- CoolingForced Air
- Noise<= 65 dB
- AI Recognition
- Image SensorDual 4 MP Starlight CMOS
- Fill LightIntelligent High-Brightness LED
- Video EncodingH.264 / H.265
- Coverage2 charging spaces
- RecognitionVehicle entry/exit, type, license plate
- Abnormal MonitoringCross-line, non-motor/fuel vehicle, loitering, flame, smoke
- General
- Display7-inch Touch Screen
- CommunicationCAN (250K/500K), RS485, Ethernet, 4G
- ProtectionIP54
- Operating Temp-25 C ~ 55 C
- Dimensions800 x 540 x 1700 mm
