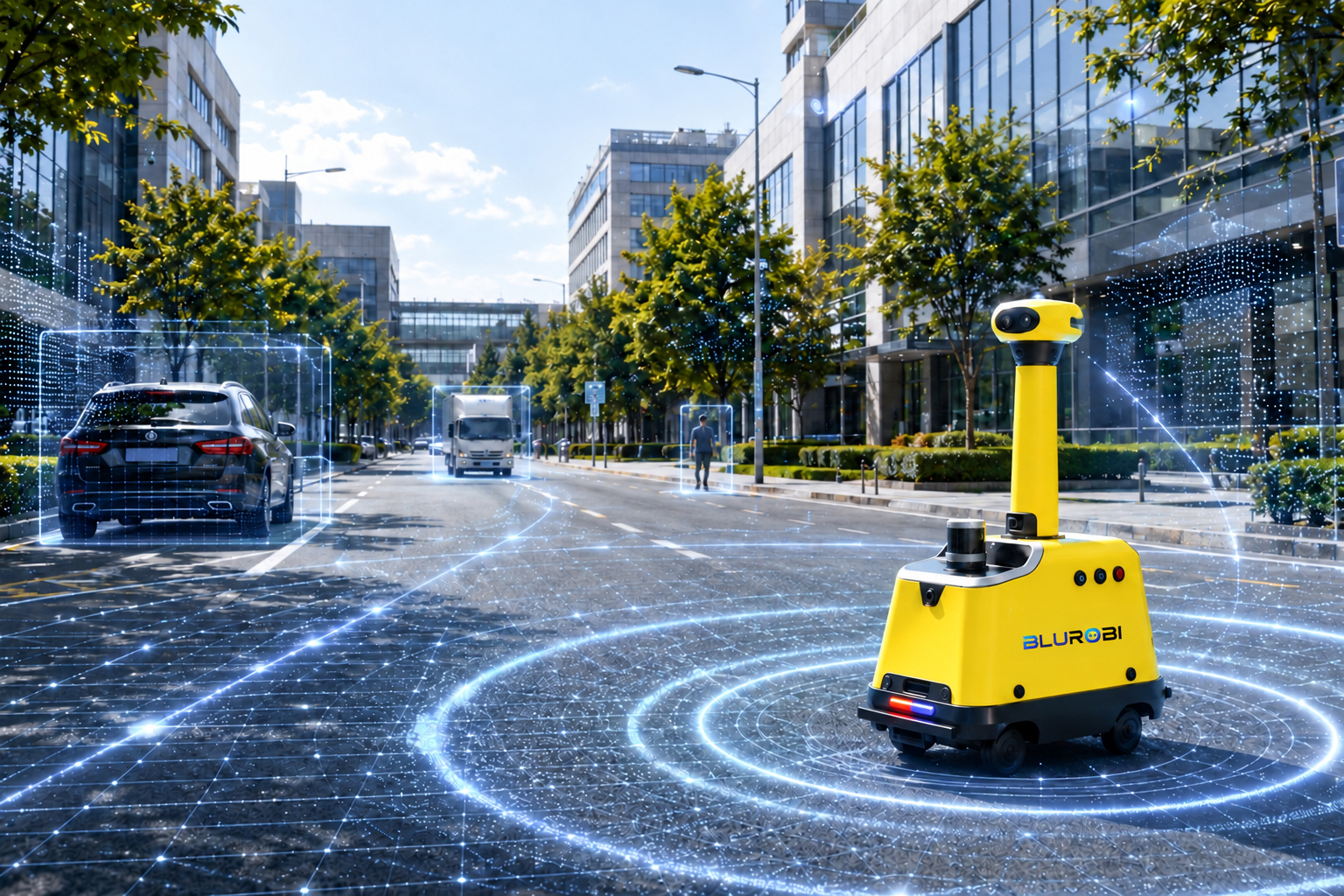

360° Autonomous Inspection
Combining 360° panoramic vision, 3D LiDAR SLAM and autonomous mobility, the robot auto‑plans routes and cruises with obstacle avoidance to cover roads and campuses, eliminating fixed‑camera blind spots.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
SV-RBT-R1-EX Roadside Intelligent Management Robot
Intelligent inspection robot with autonomous navigation, auto patrol, auto-charging, and AI recognition.
3D LiDAR SLAM centimeter-level positioning, 4-lens 360-degree 8MP cameras, 600W wireless charging.
For roadside parking inspection, illegal parking supervision, and park patrol.
Performance Single Battery Range 12 km Comprehensive Endurance 20 km Max Speed 0 ~ 5 m/s Max Climbing Slope 20 deg Max Obstacle Width 10 cm Max Obstacle Height 4 cm Battery 24 V / 35 Ah Sensors Navigation 3D LiDAR + SLAM Obstacle Avoidance Ultrasonic + binocular depth camera Top Camera 4-lens, 8 MP per lens Front Camera Single-lens, 8 MP Charging 600 W wireless auto-charging General Weight 70 kg Dimensions 73 x 45 x (110 ~ 180) cm Protection IP55 Body Sheet metal + electric chassis + retractable push rod.
Product Display
Showcase of product features and physical appearance.

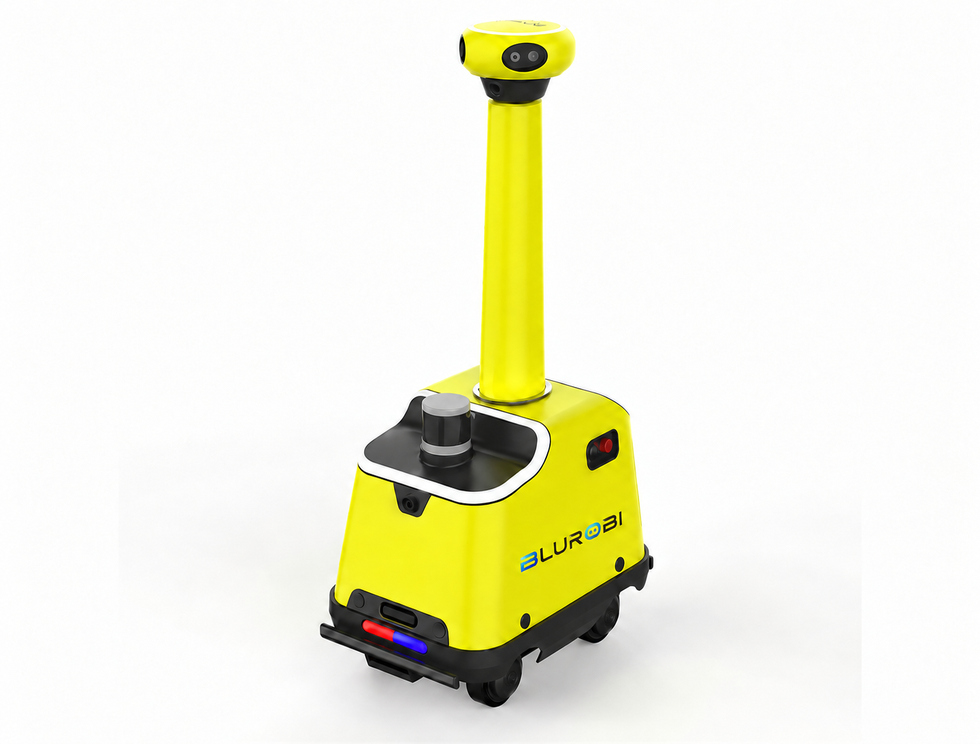

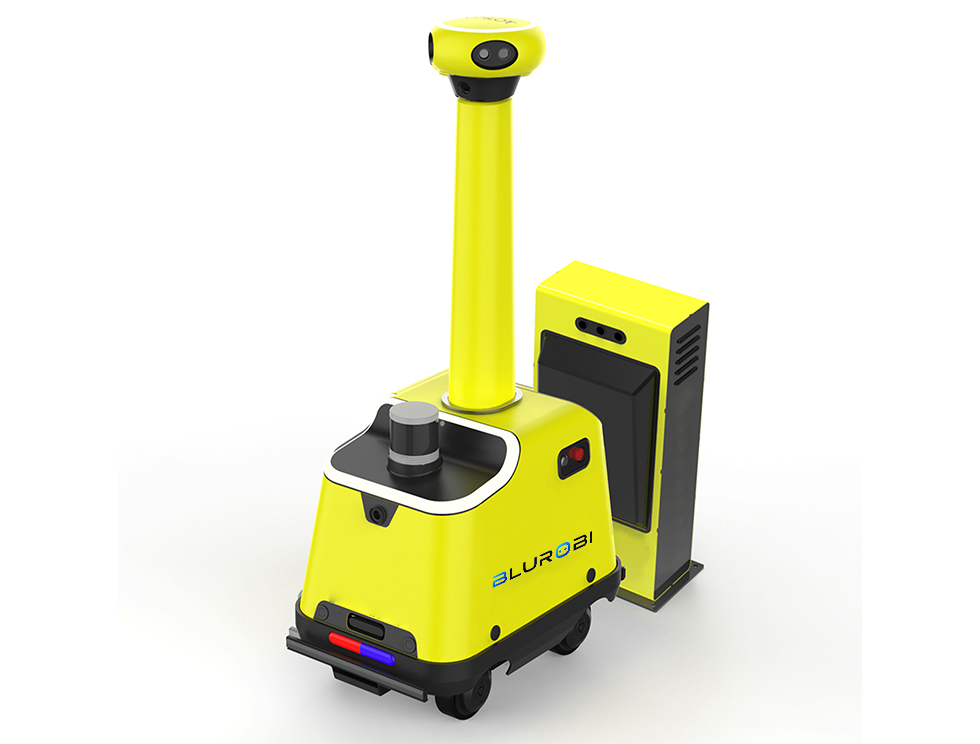

SV-RBT-R1-EX Roadside Intelligent Management Robot
- Leverages LiDAR + SLAM navigation, with ultrasonic sensors and binocular depth cameras for autonomous obstacle avoidance.
- Equipped with a 4 lens 8MP 360° panoramic camera and a single lens 8MP front view high definition AI camera.
- AI algorithms analyze data automatically and push alerts for detected abnormal events in real time.
- IP55 rated; integrated with 600W inductive wireless charging for automatic recharging, enabling 24hour continuous operation.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.
Real‑Time Anomaly Alerts
Multi‑channel HD cameras paired with AI algorithms auto‑detect illegal parking, road hazards, people and vehicles, and send real‑time alerts for faster response.
24/7 Unattended Operation
Auto‑inspection and wireless charging create a closed workflow for round‑the‑clock operation, reducing labor costs with no on‑site staff required.
Multi‑Use Platform
One robot platform supports smart parking, traffic monitoring and campus security, maximizing hardware utilization.
Application Scenarios
Typical real‑world deployment environments for the product.
Smart Parking Management
Road-side parking inspection, illegal parking identification.
Intelligent Traffic Monitoring
Road traffic condition inspection and monitoring.
Security Patrol
Autonomous security patrol for campus premises.
Product Specifications
Showcase of product features and physical appearance.
- Performance
- Single Battery Range12 km
- Comprehensive Endurance20 km
- Max Speed0 ~ 5 m/s
- Max Climbing Slope20 deg
- Max Obstacle Width10 cm
- Max Obstacle Height4 cm
- Battery24 V / 35 Ah
- Sensors
- Navigation3D LiDAR + SLAM
- Obstacle AvoidanceUltrasonic + binocular depth camera
- Top Camera4-lens, 8 MP per lens
- Front CameraSingle-lens, 8 MP
- Charging600 W wireless auto-charging
- General
- Weight70 kg
- Dimensions73 x 45 x (110 ~ 180) cm
- ProtectionIP55
- BodySheet metal + electric chassis + retractable push rod
