High‑Precision Time Alignment
Accurate frame synchronization boosts detection accuracy.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
SV-ETL-E3A-EX Holographic Perception All-in-One
Multi-camera HD video + wide-area microwave fusion.
1x9MP Global Exposure + 2x8MP Low-light CMOS.
Covers 8 lanes, 250m range.
Traffic violation capture: red light, line pressing, retrograde.
GA/T496-2014 compliant.
Product Display
Showcase of product features and physical appearance.

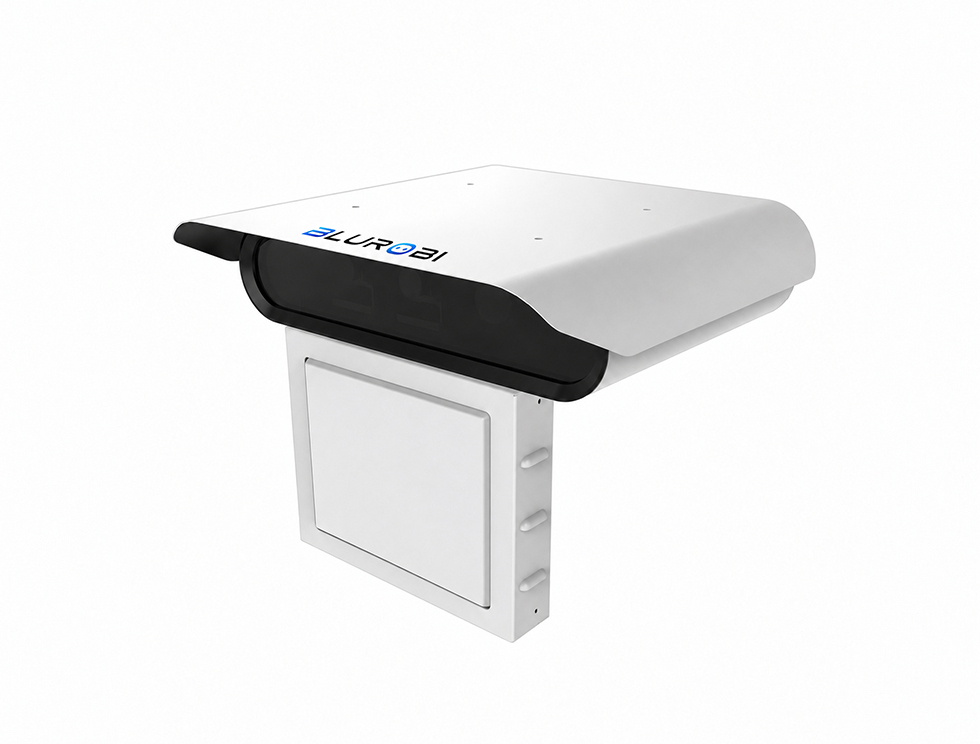

SV-ETL-E3A-EX Holographic Perception All-in-One
- 9MP global‑exposure & dual 8MP low‑light CMOS, ≤90ms latency, PTP sync, H.264/H.265 multi‑stream output.
- LPR & e‑police violation capture, GA/T496‑2014 compliant, outputs vehicle coordinates and speed.
- Millimeter‑wave radar: 250m range, 8‑lane coverage, high‑precision speed‑angle measurement.
- 100 ms‑cycle real‑time traffic data processing.
- Remote upgrade & configuration, industrial‑grade IP67 protection.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.
Multi‑Dimensional All‑Weather Sensing
Radar‑camera fusion for reliable detection in harsh weather.
Long‑Range Full‑Section Monitoring
250‑meter detection & multi‑target tracking across full lanes.

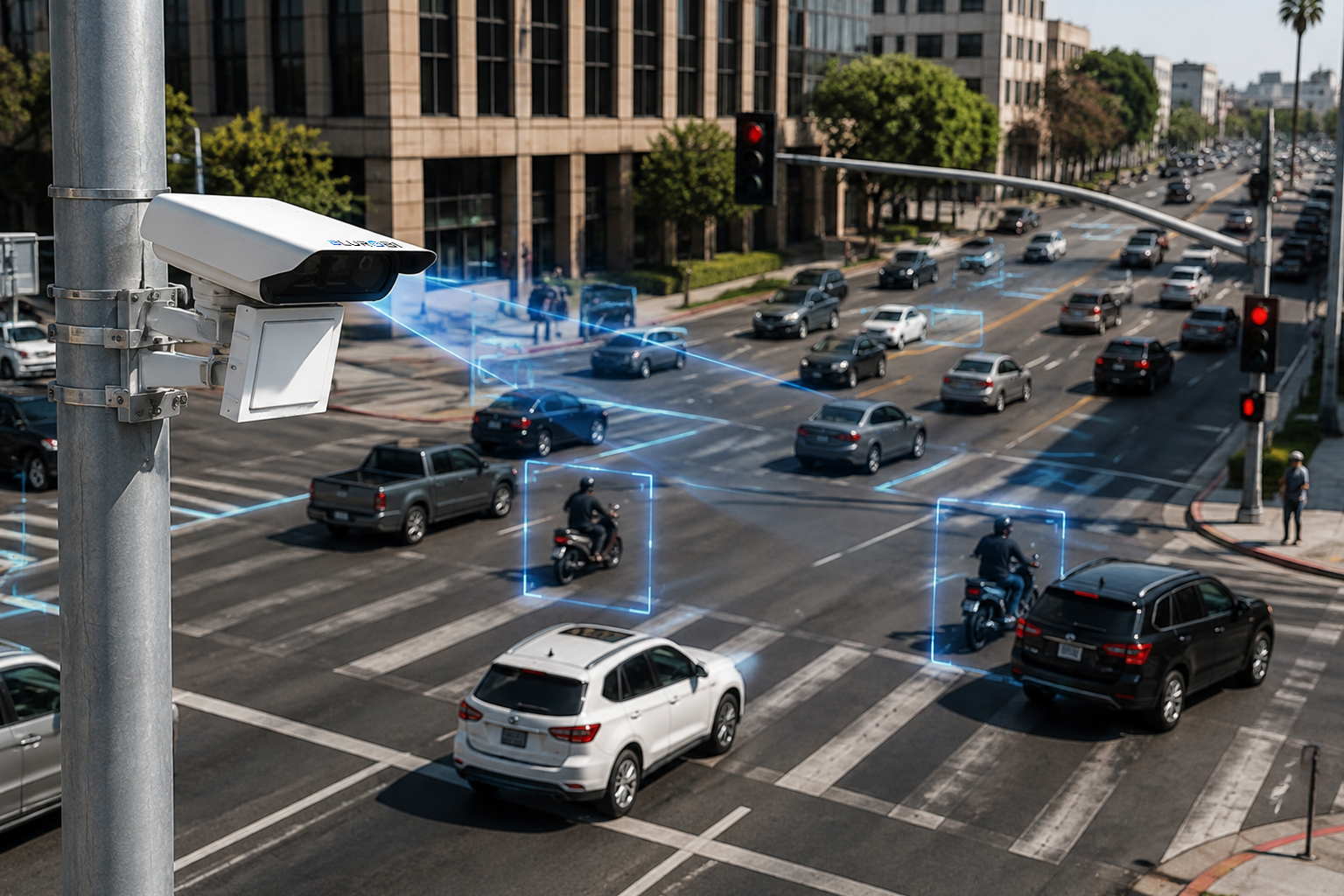

Traffic Order Management
Capture various traffic violation behaviors automatically.
Application Scenarios
Typical real‑world deployment environments for the product.
Intersection Adaptive Signal Timing
Optimize traffic light timing with real‑time intersection data.
Pedestrian & Non‑Motorized Target Detection
Reliable detection for pedestrians and two‑wheelers.
Traffic Violation & Incident Detection
Auto‑detect traffic violations and road incidents.
Product Specifications
Showcase of product features and physical appearance.
- Camera
- Capture Camera9 MP, 1-inch Global Exposure CMOS x1
- Detection Camera8 MP, 1/1.8-inch Starlight CMOS x2
- CompressionH.264, H.265 (dual-stream)
- Bitrate256 Kbps ~ 16 Mbps
- Frame Rate1 ~ 25 fps
- Main Stream (Capture)4096 x 2160 @ 25 fps
- Main Stream (Detection)3840 x 2160 @ 25 fps
- Sub Stream1920 x 1080 @ 25 fps
- Lens
- Focal Length Options8/12/16/20/25/35/50 mm
- Capture Resolution9 MP
- Detection Resolution8 MP
- Radar
- Detection Distance30 ~ 250 m
- Speed Range-300 ~ +300 km/h
- Speed Accuracy+/- 0.15 km/h
- Angle Accuracy (Narrow)+/- 0.2 deg
- Angle Accuracy (Wide)+/- 0.6 deg
- Ranging Accuracy (Narrow)+/- 0.4 m
- Ranging Accuracy (Wide)+/- 0.15 m
- General
- NetworkRJ45 x2
- VoltageDC 12V +/- 5%
- Power< 40 W
- WeightApprox. 12.5 kg
- DimensionsApprox. 500 x 450 x 360 mm
- Operating Temp-30 C ~ 70 C
- ProtectionIP67
