Continuous Cross‑Camera Tracking
Stitches multi‑perspective footage, tracks and tags identical targets across camera views.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
SV-ETL-M3A-EX Full-Scenario Perception Camera
Three 8MP HD camera modules with deep learning and internal compatible design for various lenses.
Built-in micro PTZ for easy installation.
Traffic data collection: flow, average speed, headway, lane occupancy.
For smart highways, digital intersections, V2X.
Camera Pixel 8 MP x3 Sensor 1/1.
Product Display
Showcase of product features and physical appearance.

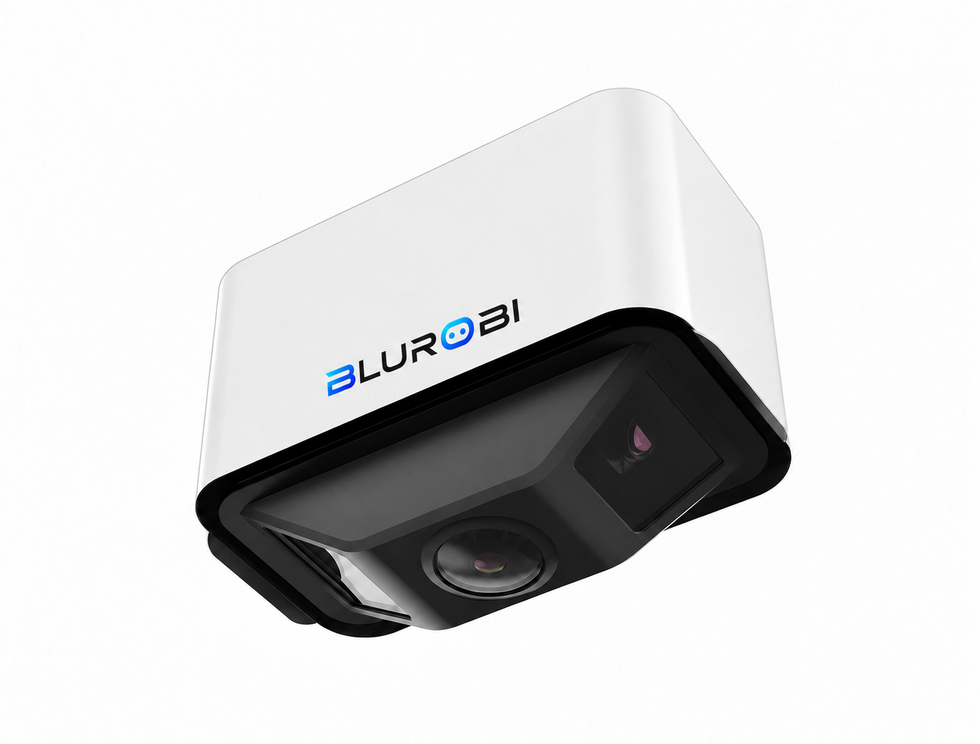

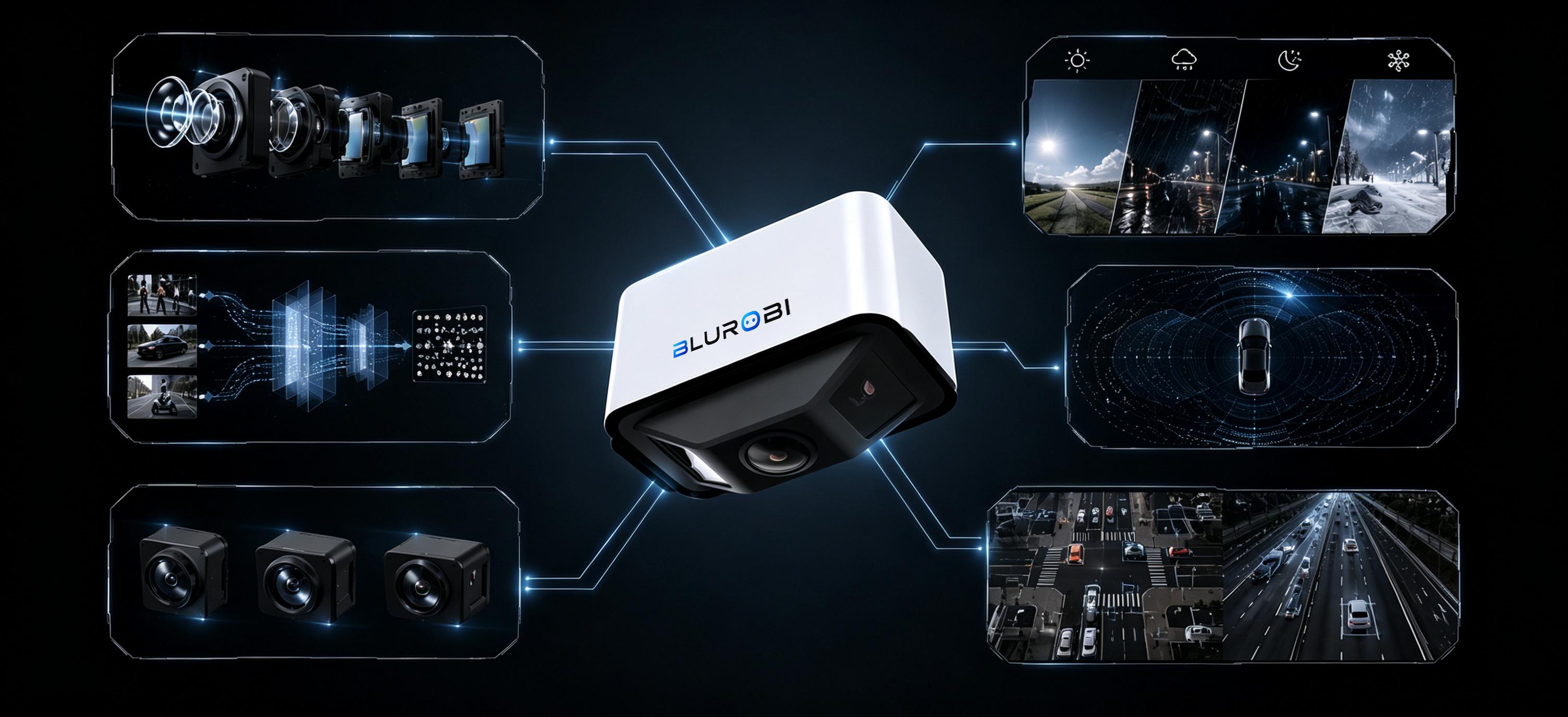

SV-ETL-M3A-EX Full-Scenario Perception Camera
- Triple 1/1.8‑inch HD CMOS sensors with built‑in micro PTZ for simple setup and service.
- NTP time synchronization, low‑latency multi‑stream output.
- Captures traffic flow, lane speed, headway and lane occupancy data.
- Supports remote software upgrades and parameter configuration.
- IP67 outdoor protection.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.
Real‑Time Road Live View
Delivers reliable road monitoring with low‑light, WDR and smart video encoding.
Traffic Parameter Collection
Outputs lane‑level traffic flow,speed,headway and lane‑occupancy statistics.
Flexible All‑Scenario Perception
Triple‑8MP sensors with multi‑lens compatibility for 24/7 omni‑directional smart‑traffic monitoring.
Application Scenarios
Typical real‑world deployment environments for the product.
Intersection Adaptive Signal Control
Detects vehicles and pedestrians to dynamically adjust traffic‑light timing.
Arterial Road Coordinated Management
Collects lane‑level traffic data to boost overall road travel efficiency.
Closed‑Loop Multi‑Device Collaboration
Cross‑device linkage delivers coordinated traffic control across intersections and road segments.
Product Specifications
Showcase of product features and physical appearance.
- Camera
- Pixel8 MP x3
- Sensor1/1.8-inch Starlight CMOS
- Min IlluminationColor: 0.001 lx / B/W: 0.0001 lx
- ProtocolONVIF, GB/T28181
- CompressionH.264, H.265 (dual-stream, AVI)
- Bitrate256 Kbps ~ 16 Mbps
- Frame Rate1 ~ 25 fps
- Max Resolution3840 x 2160
- Main Stream3840 x 2160 @ 25 fps
- Sub Stream1920 x 1080 @ 25 fps
- Lens & PTZ
- Lens Resolution3840 x 2160
- PTZ Range-18 deg ~ +18 deg (bidirectional)
- General
- Power InterfaceDC5521
- NetworkRJ45 x2
- VoltageDC 12V +/- 5%
- Power30 W
- WeightApprox. 8 kg
- DimensionsApprox. 382 x 180 x 317 mm
- Operating Temp-30 C ~ 70 C
- ProtectionIP67
