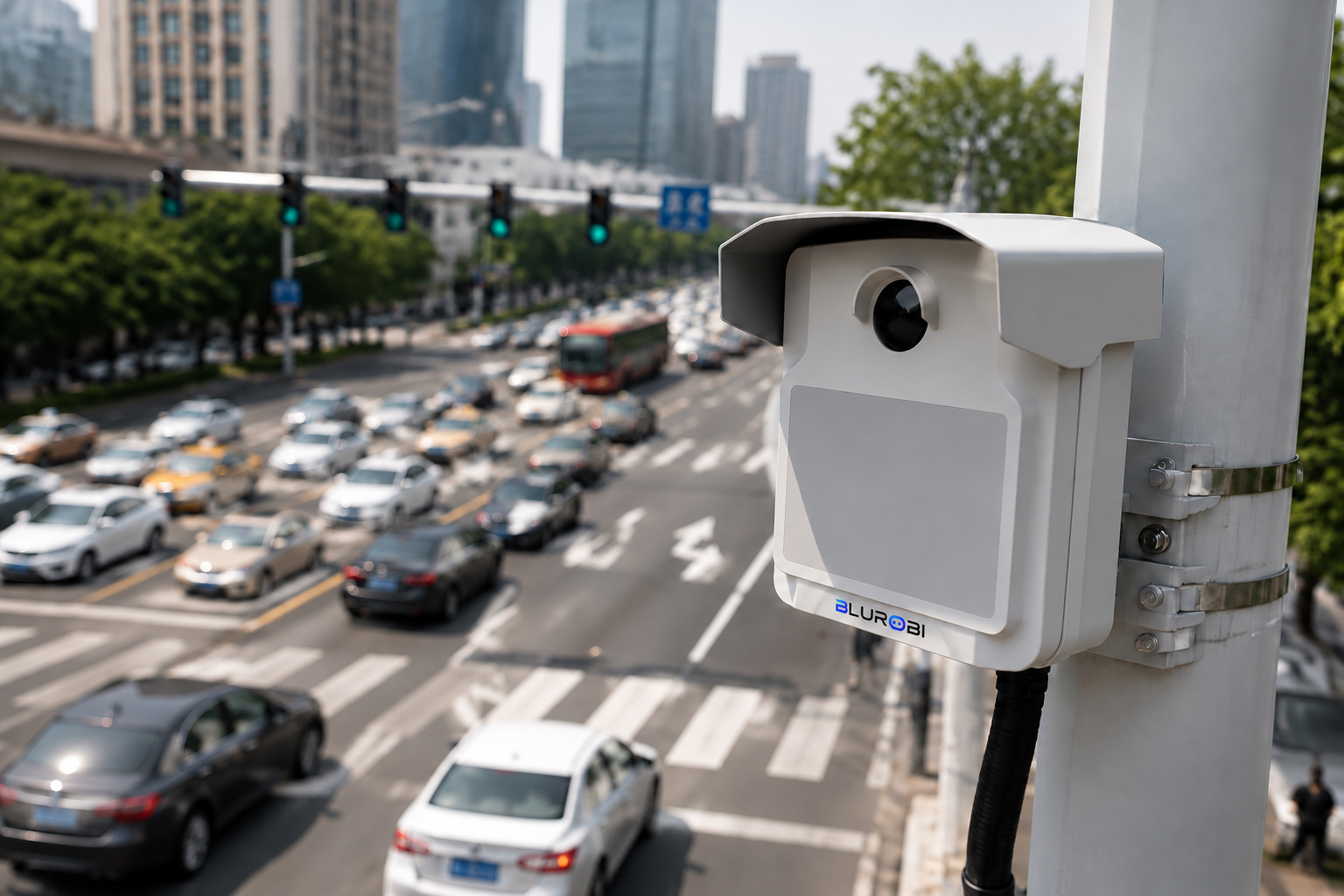

Traffic Flow Detection
Accurate lane‑level traffic monitoring for queue, speed and vehicle statistics.
*Images are for illustrative purposes. Actual product appearance and specifications may vary.
SV-ETL-E1A-EX Monocular Radar-Vision Integrated Camera
Deeply integrated 8MP HD video perception + wide-area mmWave microwave detection.
All-weather, long distance (250m), high resolution.
Motor/non-motor/pedestrian detection, traffic statistics & event detection.
For highways, urban intersections, and road sections.
Camera Sensor 1/1.
Product Display
Showcase of product features and physical appearance.

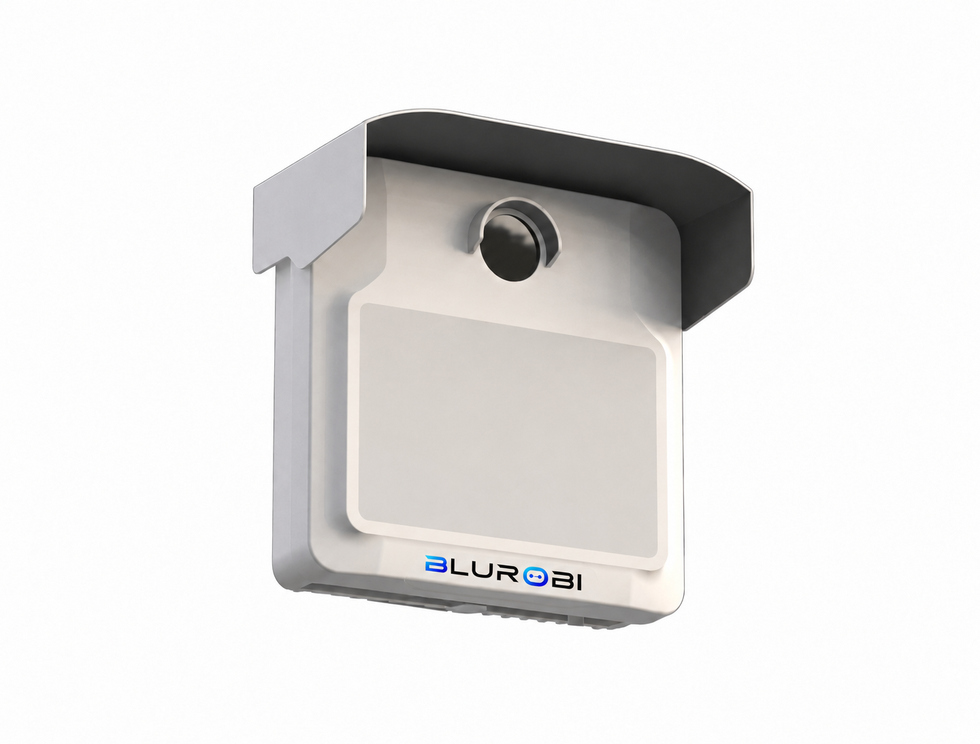

SV-ETL-E1A-EX Monocular Radar-Vision Integrated Camera
- 8MP starlight CMOS sensor with wide‑dynamic‑range for multi‑lighting detection.
- High‑compute processor with neural acceleration for fast local processing.
- Millimeter‑wave radar and proprietary radar‑video fusion for robust all‑weather perception.
- Built‑in auto‑calibration, deep‑learning traffic flow & event analytics.
- IP67 industrial design, multi‑stream encoding, remote upgrade & configuration.
Core Advantages
Key product strengths that deliver high‑value capabilities for users.
Product Advantages
Key product strengths and performance benefits.

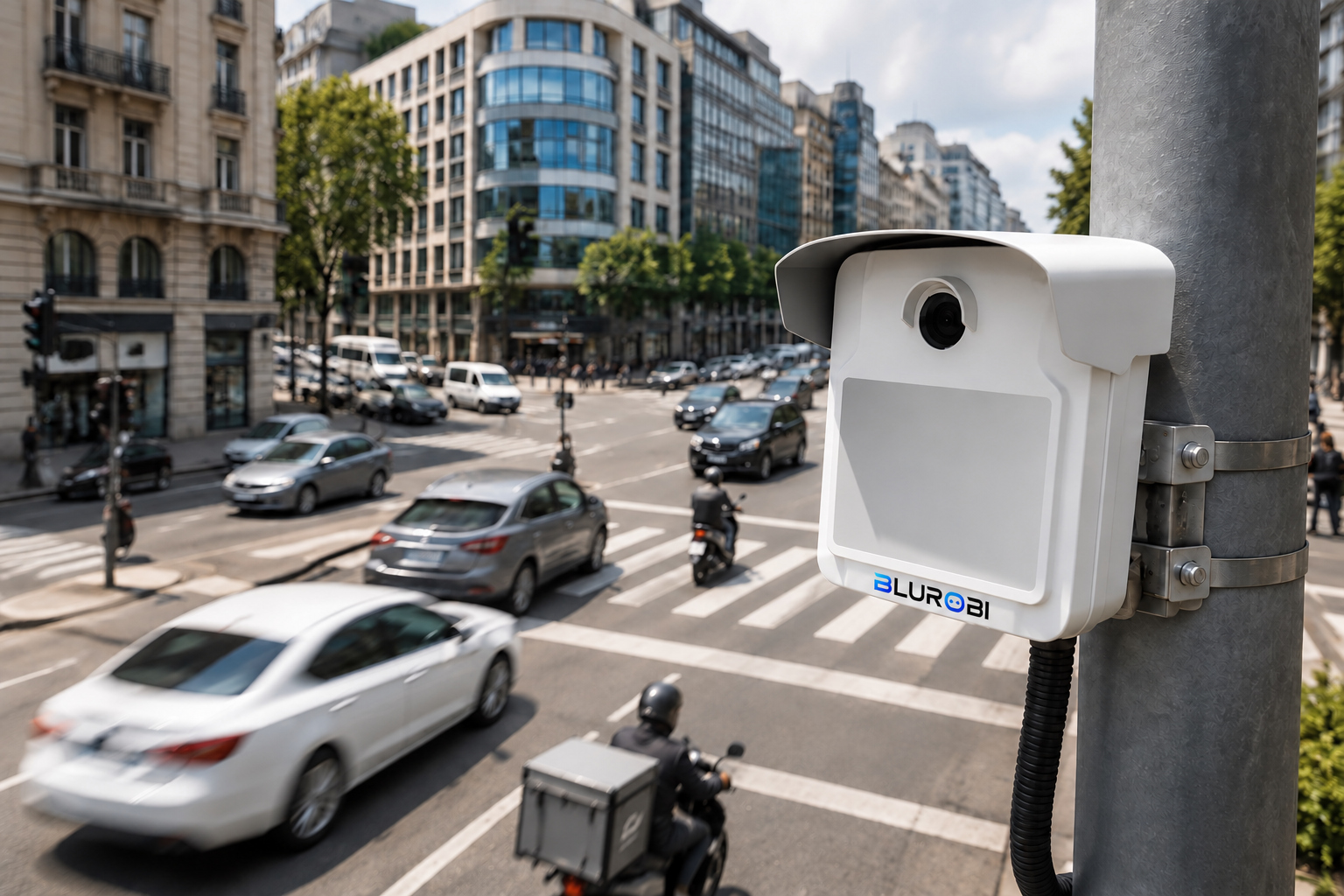

Traffic Incident Warning
Detect speeding, wrong‑way driving and abnormal stops for instant risk alerts.

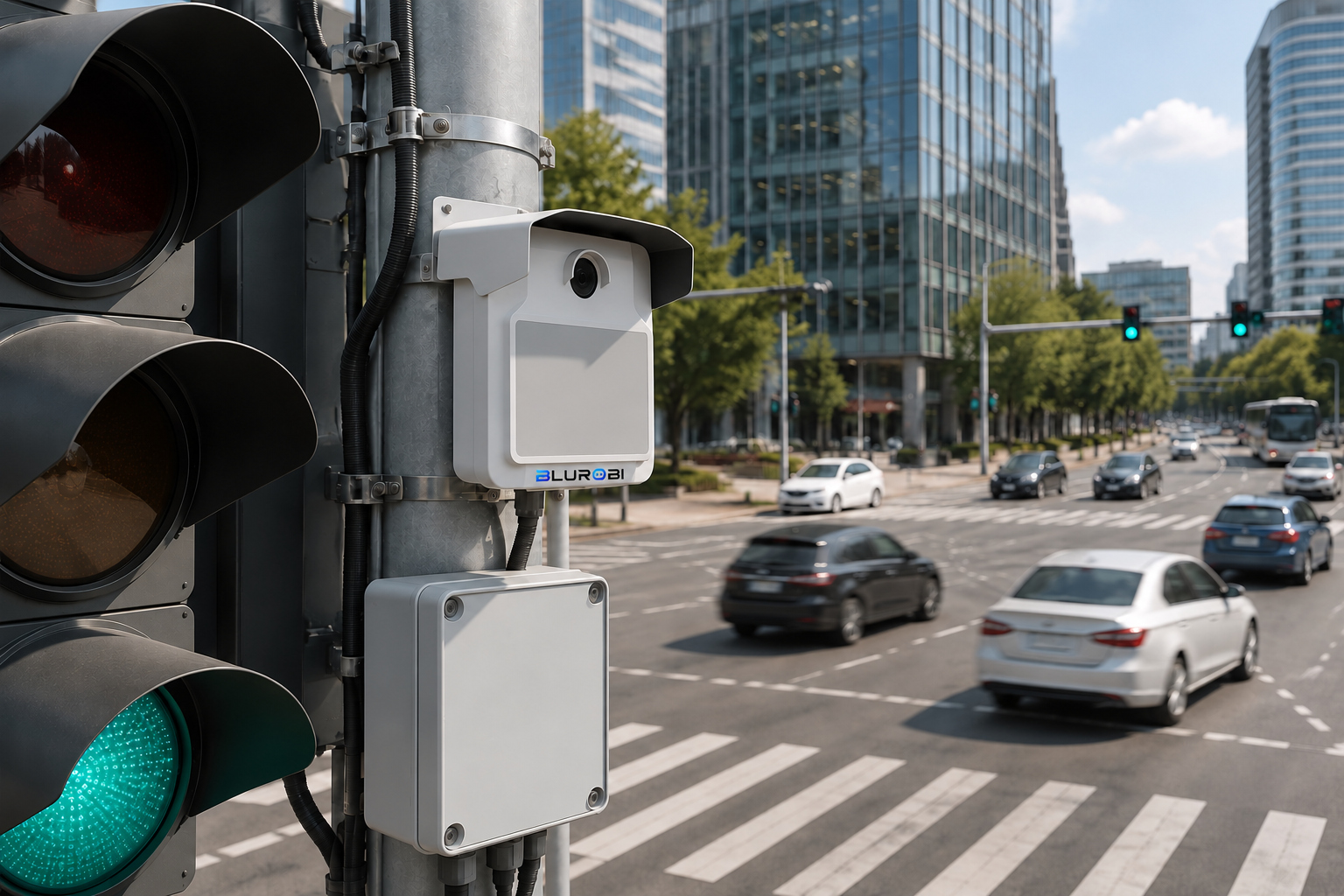

Signal Controller Integration
Feed real‑time traffic data to optimize traffic signal timing and decision‑making.

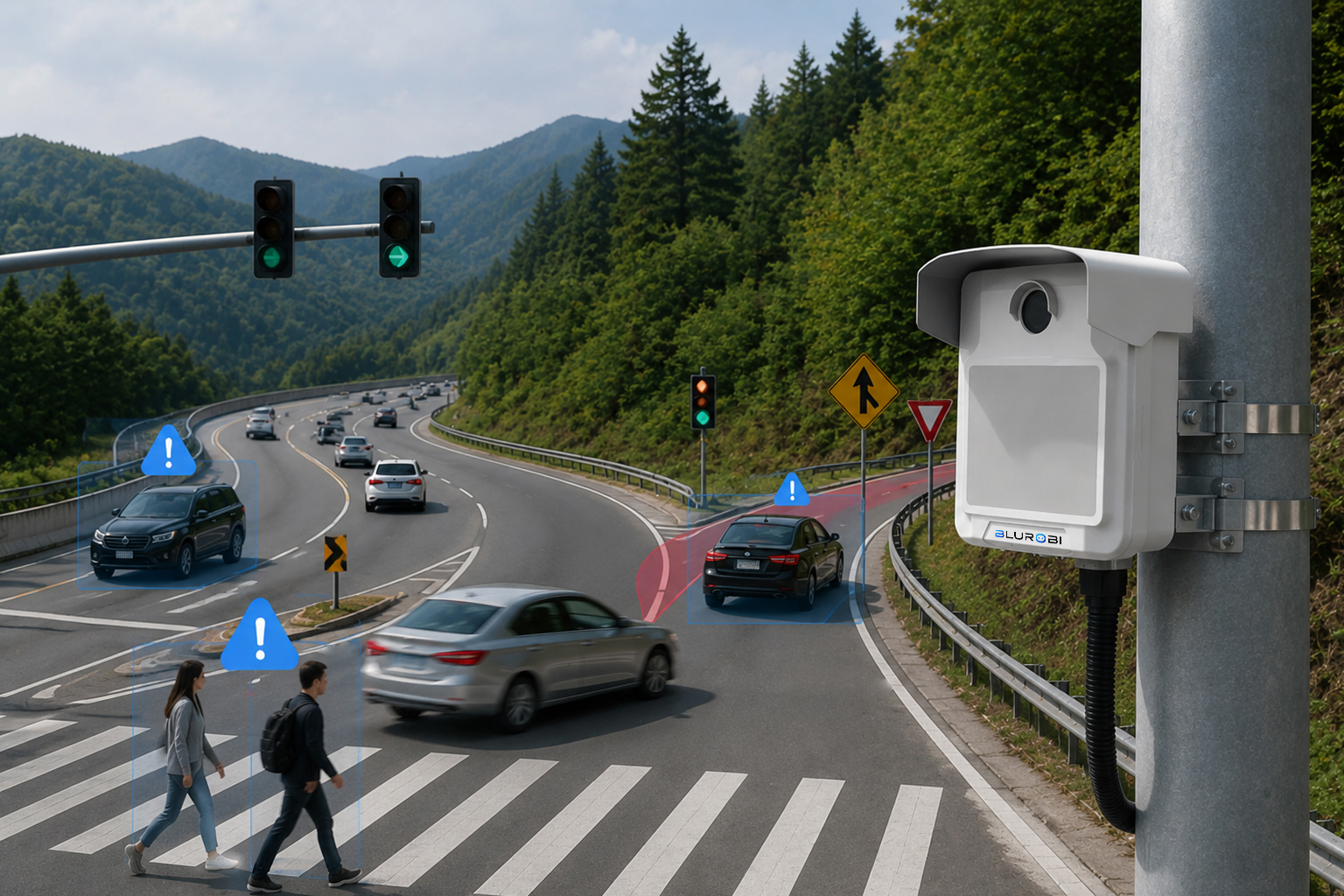

Safety Early Warning
Pre‑warn risks for curve sections, ramp merging and pedestrian crossing scenarios.
Application Scenarios
Typical real‑world deployment environments for the product.

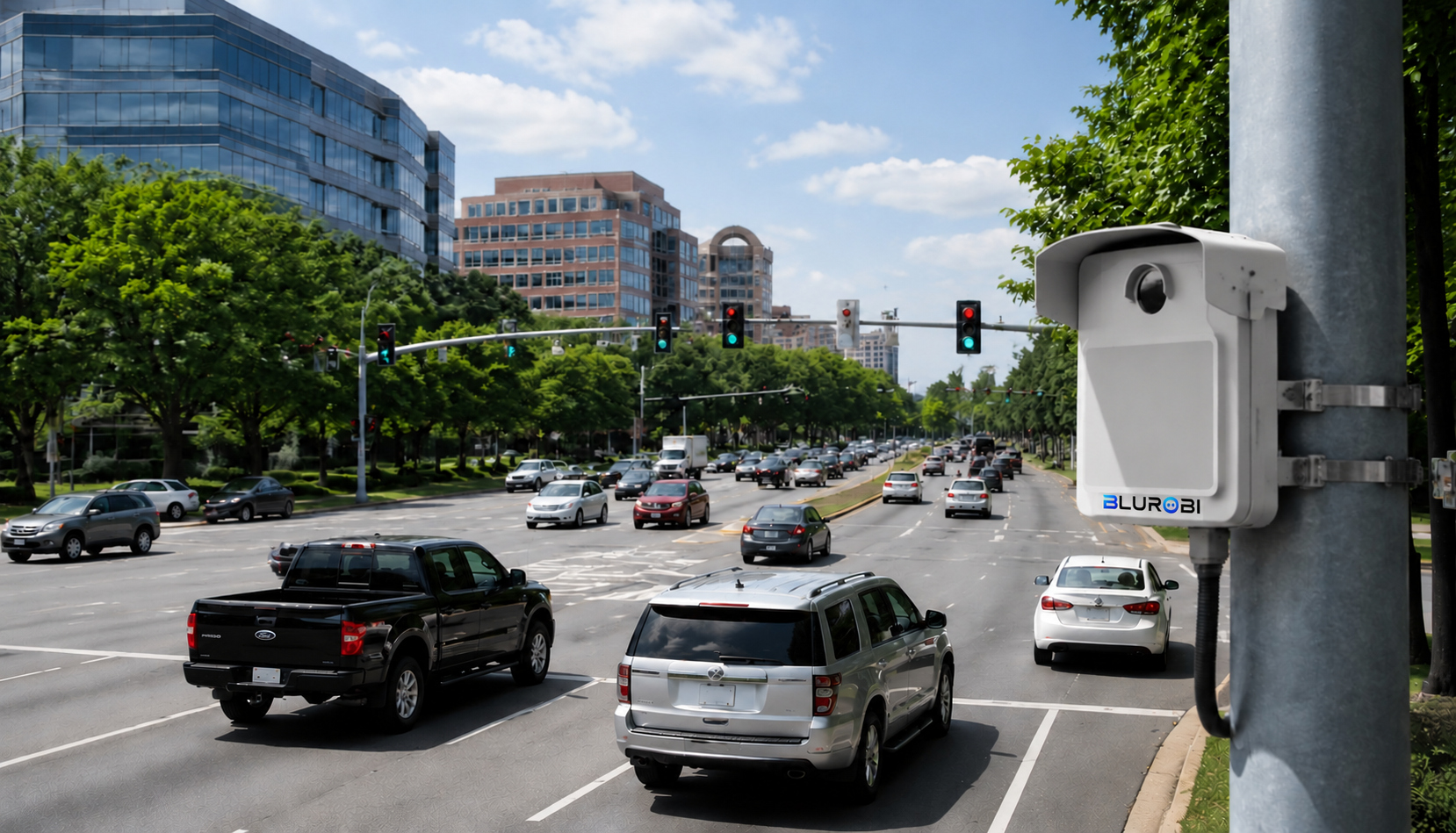

Intersection Signal‑Link Deployment
Real‑time traffic sensing for adaptive signal timing.

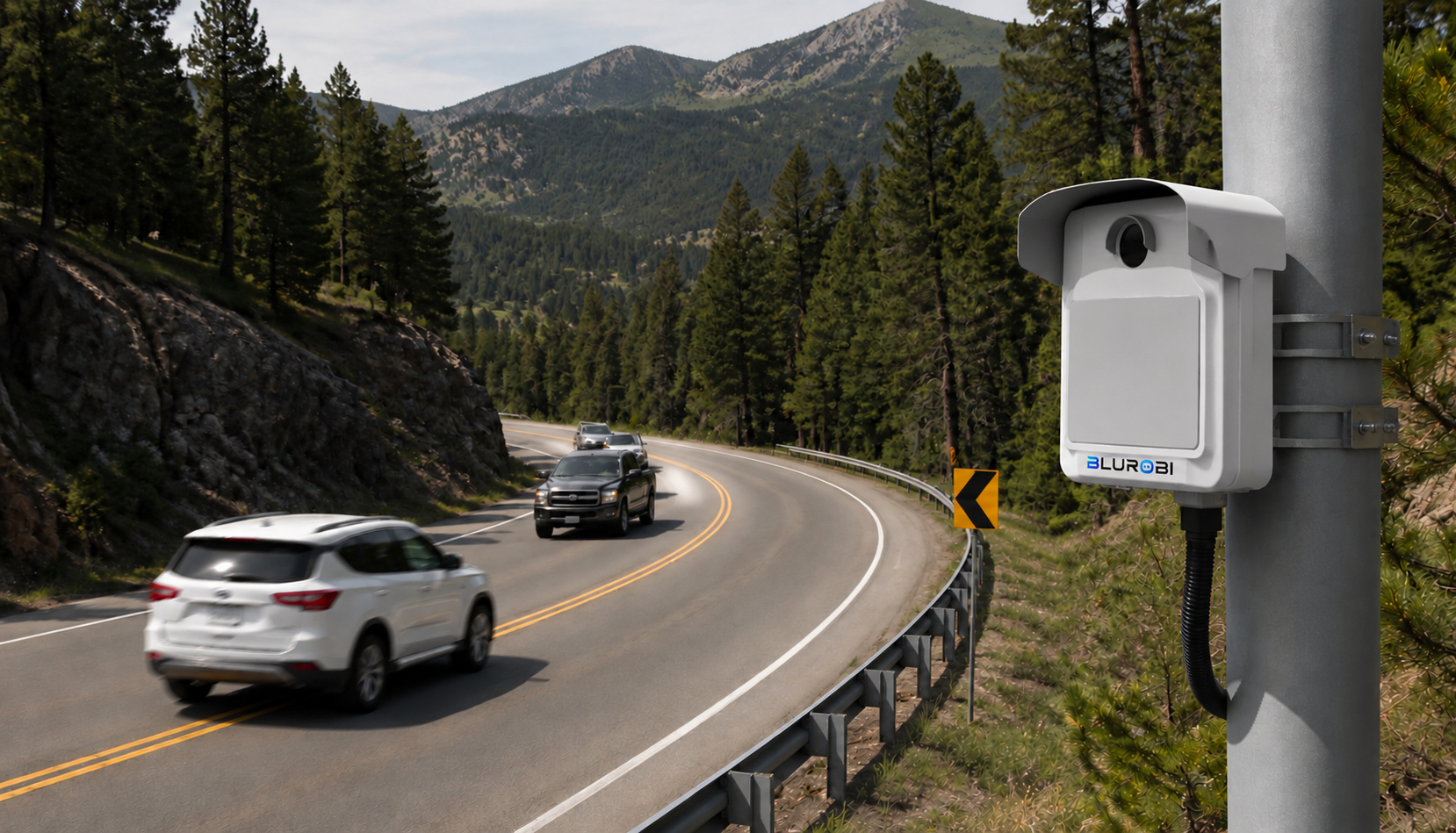

Curve Blind‑Spot Early Warning
Detect oncoming vehicles for curve hazard pre‑alert.

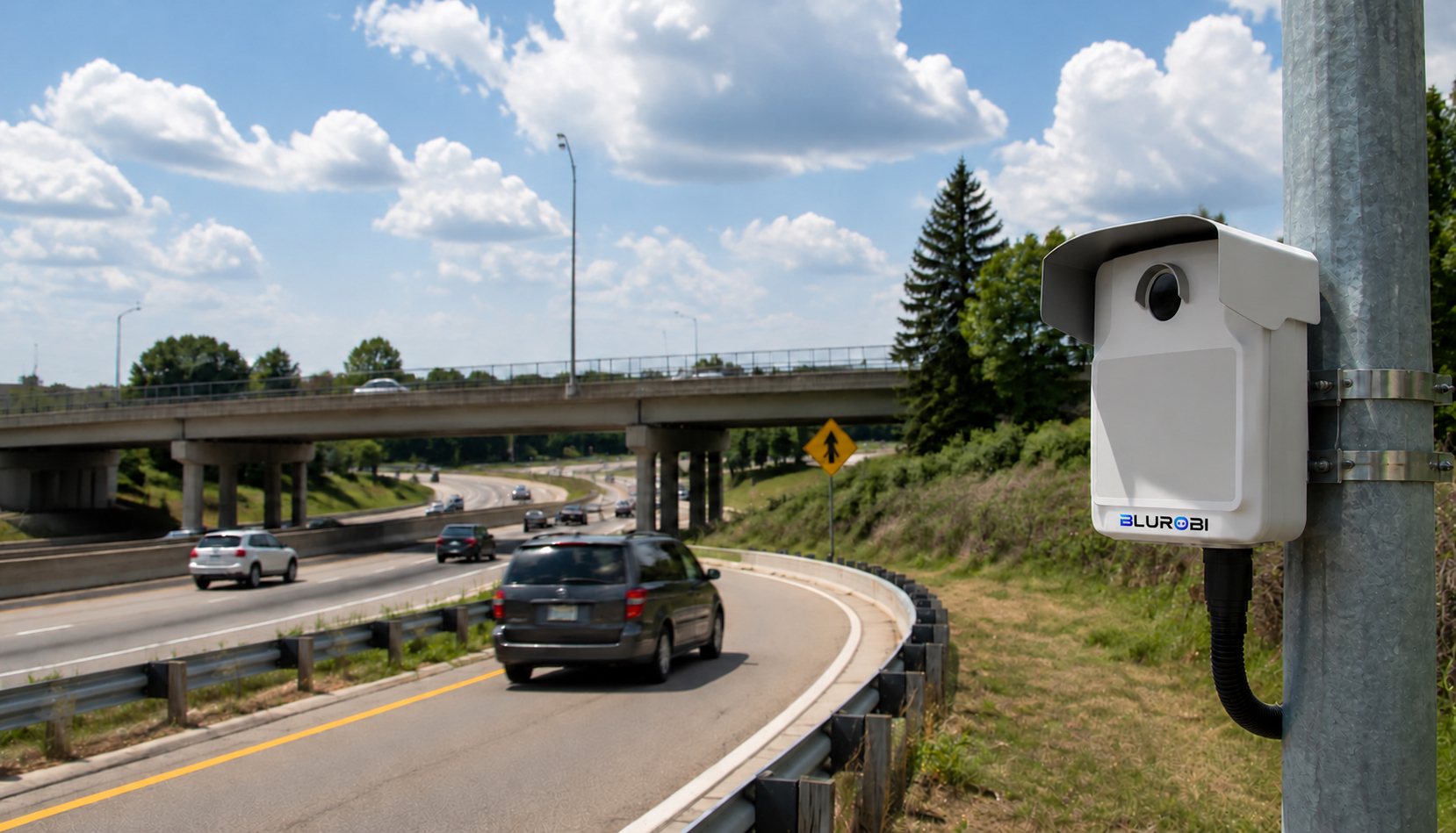

Ramp & Slope Risk Monitoring
Monitor merging traffic for ramp‑section safety protection.
Product Specifications
Showcase of product features and physical appearance.
- Camera
- Sensor1/1.8-inch 8 MP Starlight CMOS
- ProtocolONVIF, GB/T28181, RTSP, NTP
- CompressionH.265+ / H.265X (dual-stream, AVI)
- Bitrate256 Kbps ~ 16 Mbps
- Frame Rate1 ~ 30 fps
- Main Stream3840 x 2160 @ 30 fps
- Sub Stream1920 x 1080 @ 30 fps
- Lens
- Focal Length8 / 12 / 16 mm (optional by scenario)
- Resolution8 MP
- Radar
- Detection Distance30 ~ 250 m
- Speed Range-250 ~ +250 km/h
- Speed Accuracy+/- 0.2 km/h
- Ranging Accuracy+/- 0.3 m
- General
- Power InterfaceDC5521
- VoltageDC 12V +/- 5%
- Power< 10 W
- WeightApprox. 3 kg
- Operating Temp-30 C ~ 60 C
- ProtectionIP67
